Product details
Size | 90 Cm |
Material | Tempered Glass |
Brand | Bosch |
Colour | Black |
Power Source | Gas Powered |
Fuel Type | Gas |

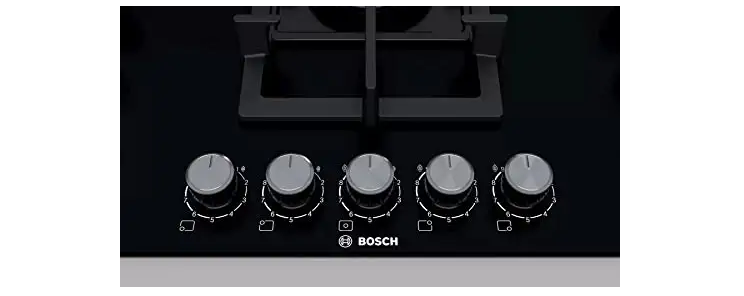

- Design - Tempered glass hob surface, black | Flush or slightly raised installation.: install the hob either flush or slightly raised on the worktop | Cast iron continuous separable pan supports
- Usage convenience - 1 Hand ignition: just push and turn the knob to ignite the flame.
- Burners and power - 5 Gas burners | Left front: Economy burner up to 1 KW (depending on gas type) | Left rear: Standard burner up to 1.75 KW (depending on gas type) | Center front: Wok burner up to 4 KW (depending on gas type) | Right rear: Rapid burner up to 3 KW (depending on gas type) | Right front: Standard burner up to 1.75 KW (depending on gas type)
- Safety - Flame failure safety device: prevents unwanted gas flow when flame goes out.
- Installation (gas types & measurements)- Usable for: NG H/E 20mbar, E+ 20/25mbar Liquid gas G30,31 28-30/37mbar| Preset nozzle: Liquid gas (28-30/37mbar) | Nozzle set for Natural gas nozzles (20 mbar) included. Nozzles for all other gas types can be ordered via the customer service. For nozzle change, please contact the customer service. | Dimensions of the product (HxWxD mm): 58 x 915 x 520|Required niche size for installation (HxWxD mm): 45 x 850 x (490 - 502) | Min. worktop thickness: 30 mm
Technical Specifications
General
Energy input- Gas
Type of control setting and signalling devices- cylindrical knobs
Safety device- Flame failure safety device
Features- Wok burner
Construction type
Color of frame- Black
Color of surface- Black
Built-in / Free-standing- Built-in
Type of frame- Flush w surrounding surfaces
Number of gas burners- 5
Installation type- Built-in into the cabinet
Total number of positions that can be used at the same time- 5
Size and weight
Dimensions- 58 x 915 x 520 mm
Net weight- 21.5 kg
Cooking zone 1
Location of heating element- front left
Power of heating element (kW)- 1 kW
Type of heating element- Gas
Cooking zone 2
Location of 2nd heating element- center left
Cooking zone 3
Location of 3rd heating element- back left
Power of 3rd heating element (kW)- 1.75 kW
Type of 3rd heating element- Gas
Cooking zone 4
Location of 4th heating element- middle back
Cooking zone 5
Location of 5th heating element- back right
Power of 5th heating element (kW)- 3 kW
Type of 5th heating element- Gas
Cooking zone 6
Location of 6th heating element- center right
Cooking zone 7
Location of 7th heating element- front right
Power of 7th heating element (kW)- 1.75 kW
Type of 7th heating element- Gas
Cooking zone 8
Location of 8th heating element- front middle / central
Cooking zone 9
Location of 9th heating element- front centre/cent
Power of 9th heating element (kW)- 4 kW
Type of 9th heating element- Gas
Safety
Type of safety device for gas- Electromagnetic for each burner
Power on indicator- No
Residual heat indicator- without
Safety device- Flame failure safety device
Main on/off switch- No
Connection
Length electrical supply cord- 100 cm
Energy input- Gas
Frequency- 50 Hz
Gas connection- rear, right
Gas connection rating- 11,500 W
Accessories
Included accessories- 1 x WOK attachment ring
Made in Spain
