Description
All Deliveries made within 24 Hours (Business Hours) post receipt of order.
Standard Installation & 3 metres piping Free
Special Extended Warranty Offer Only At Mahajan Electronics (Directly by the brand)
Buy additional 4 years Comprehensive Warranty @ Rs-6990/-. for details please call us at 9710000251 /9310000492
Bring home a OGENERAL AC with a 4 year comprehensive product warranty, it covers all the functional parts of the product & 2 Service Per Year (Gas charging will extra).
- Cooling Power for Tropical Application (CPTA Technology)
- High Reliability
-

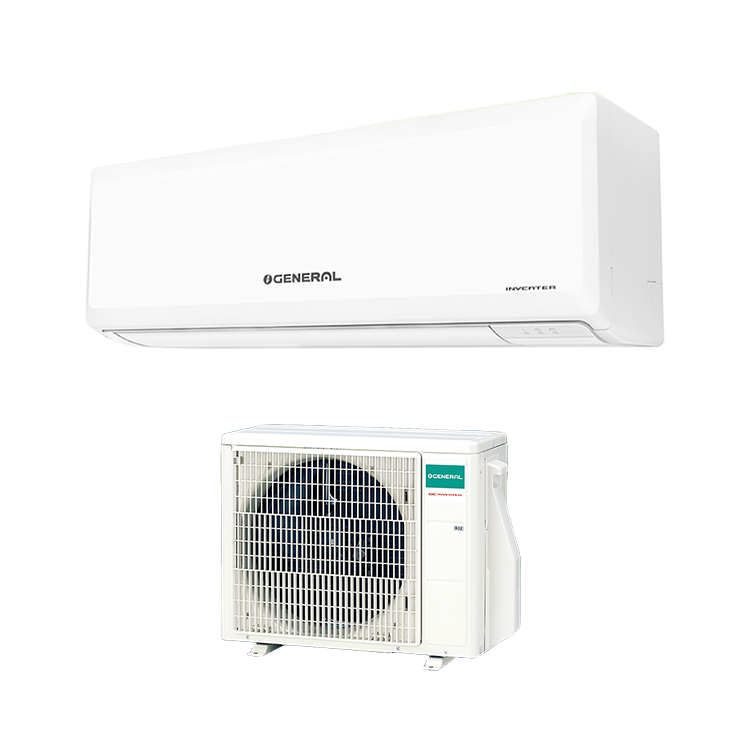

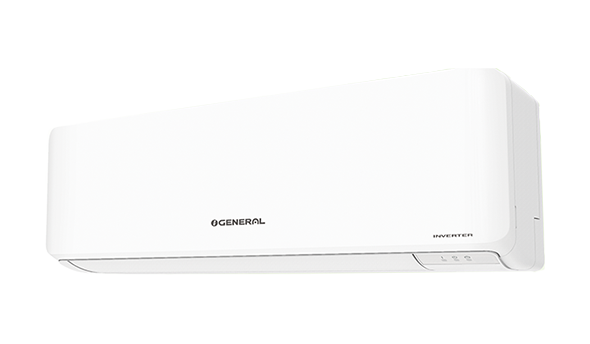

- Split AC
- 1.5 ton Capacity
- 518 CFM circulation
- Inverter
- Remote Control, Timer
- Dust Filter
- Auto Air Swing, Auto Restart
- Night Glow Buttons
- 1 Year on product 10 year only compressor and 5 year PCB warranty.
Features
Cooling Power for Tropical Application (CPTA Technology)
Powerful Cooling
High cooling capacity is maintained even at high temperatures of 46˚C
- High Temperature operation at 55°C
- 80% Cooling Capacity even at 46°C
Comfort Cooling with Full Inverter Technology ( 25% to 105% )
* 12k model
The input is greatly reduced by using a full inverter.
- Wide Capacity Range (25% to 102%) * 18k model
High Reliability System (HRS)
High Durability PCB
The upper limit of the operating voltage range was further increased to match the Indian power situation with large voltage fluctuations. Not affected by the voltage fluctuation than current models.
- Operation Guarantee (155V to 280V) * 12k/18k
- Withstands Spike Voltage at 700V * 12k/18k
- PCB Coating
| Country Of Origin - THAILAND |
Anticorrosion Heat Exchanger
- Coating (Painting)
- Blue Fin
Indoor Unit Anti-corrosion Coating
Prevent prone refrigerant leak in the Indian market by the pipe coating
Anti-corrosion Heat Exchanger (Blue Fin)
Improved corrosion resistance and longer life of heat exchanger by blue fin treatment of the outdoor unit heat exchanger
-
Power source Phase Single-phase Voltage 230 V Frequency 50 Hz Capacity Cooling 5.280 (1.320 - 5.390) kW Input Power Cooling 1.840 kW EER Cooling 2.87 W/W Max. Operating Current Cooling 10.5 A Moisture Removal 1.9 l/h Sound Pressure Level Indoor (Cooling) High 49 dB(A) Middle 46 dB(A) Low 41 dB(A) Quiet 28 dB(A) Sound Pressure Level Outdoor (Cooling) High 51 dB(A) Air Flow Rate Indoor (Cooling) High 940 m³/h Outdoor (Cooling) High 1680 m³/h Net Dimensions
IndoorHeight 270 mm Width 834 mm Depth 239 mm Net Dimensions
OutdoorHeight 541 mm Width 663 mm Depth 290 mm Net Weight Indoor 11.0 kg Outdoor 27 kg Connection Pipe Diameter Liquid φ6.35 mm Gas φ12.7 mm Drain Hose Diameter φ13.8(I.D.), φ15.8 to φ16.7(O.D.) mm Max Pipe Length (Pre Charge) 20 (10.0) m Max Height Difference 15 m Operation Range Cooling 18 to 55 °CDB Refrigerant Type R32 Charge 700 g
Conditions Apply (UEP)
