Description
All Deliveries made within 24 Hours (Business Hours) post receipt of order.
Brand will contact for installation within 24-36 Hrs of delivery. Standard Installation Applicable
Get GST invoice and save upto 28 % on business purchases. T&C Apply.
Standard Installation @ 699/+ Taxes on All Inverters 30-06-2024.
- Capacity : 1.8 Ton
Star Rating / Rated ISEER : Inverter 4 Star / 4.39
Cooling Capacity (kW) : 6.2 / 3.1 (1.75 ~ 6.5)
Cooling Capacity (Btu/h) : 21,150 / 10,575 (5,970 ~ 22,180)
Rated Power consumption (W) : 1,920 / 619 (350 ~ 2,100)
Annual Power consumption (kWh) : 1094.44
Operating Current (A) : 8.52
Dew Clean Technology : It auto cleans the coils of indoor unit heat exchanger
Air Throw *16 Meters, 4 Way Swing , PM 2.5 Filter
Triple Display :IDU Display shows %age Power consumption, Temperature (Set & Room) and Error code
Anti-corrosion treatment on Indoor and Outdoor heat exchanger tubes (BTA Oil)
Cooling Capacity @ 43°C : 100%
Indoor Unit quiet operation
5 Years Warranty on PCB, 10 Years Warranty on Compressor
Voltage Range (Stabilizer Inside) : (130 - 285 V)
Operating Temp. Range - (Cooling) - °CDB - 20~54
-
-
Key Features - Daikin FTKT60UV16U 1.8 Ton Inverter 3 Star Split Air Conditioner
- Dew Clean Technology : It auto cleans the coils of indoor unit heat exchanger
- Air Throw *16 Meters, 4 Way Swing , PM 2.5 Filter
- Triple Display :IDU Display shows %age Power consumption, Temperature (Set & Room) and Error code
- Anti-corrosion treatment on Indoor and Outdoor heat exchanger tubes (BTA Oil)
- Wi-Fi Option Kit available
- Cooling Capacity @ 43°C : 100%
- Indoor Unit quiet operation
- 5 Years Warranty on PCB, 10 Years Warranty on Compressor
- Voltage Range (Stabilizer Inside) : (130 - 285 V)
Technical/Functional Specification
Series FTKT Series Indoor Model No FTKT60UV16U Outdoor Model No RKT60UV16U Power supply intake Outdoor unit Cooling Capacity Rated Full/Half (min~max) kW 6.2 / 3.1 (1.75 ~ 6.5) Cooling Capacity Rated Full/Half (min~max) Btu/h 21,150 / 10,575 (5,970 ~ 22,180) Power consumption (Cooling) Rated Full/Half (min~max) W 1,920 / 619 (350 ~ 2,100) Annual Power Consumption kWh 1,094.44 ISEER / ISEER Rank 4.39 / Inverter - 4 Star Voltage Range V 130 - 285 Power Supply V, Hz 1 , 230, 50 Operating Current - Cooling A 8.52 Filters PM 2.5 Filter Self Diagnosis Yes Sleep Mode Yes Timer Yes Auto Restart Yes Other Convenience Features Power airflow dual flaps ; 3D Air flow ; Wide-Angle Louvers ; Vertical auto-swing (up & down) ; New Coanda Airflow ; Power Chill Operation ; Econo Mode ; Smell proof operation ; Auto-Restart after Power Failure, Dew Clean Indoor Unit

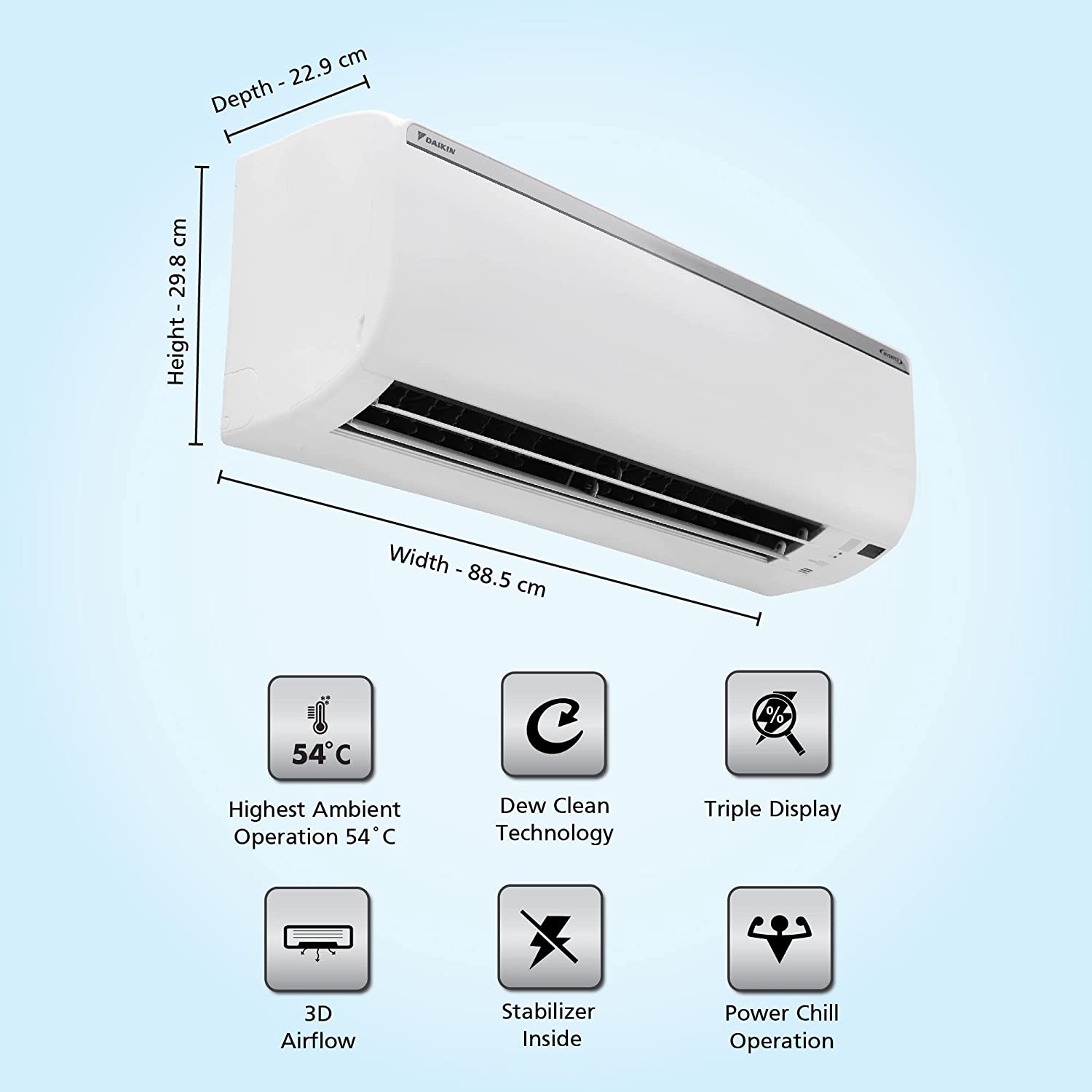

Front Panel Colour White Dimensions (H x W x D) 298 x 885 x 229 Machine Weight (Kg) 11 Airflow rate Feet³/min (Cfm) 593/td> Airflow rate m³/min (Cfm) 16.8 Moisture Removal Liters/Hour 2.6 Sound Levels (H/MH/M/ML/L/SL) 48/46/43/41/38/32 Outdoor Unit

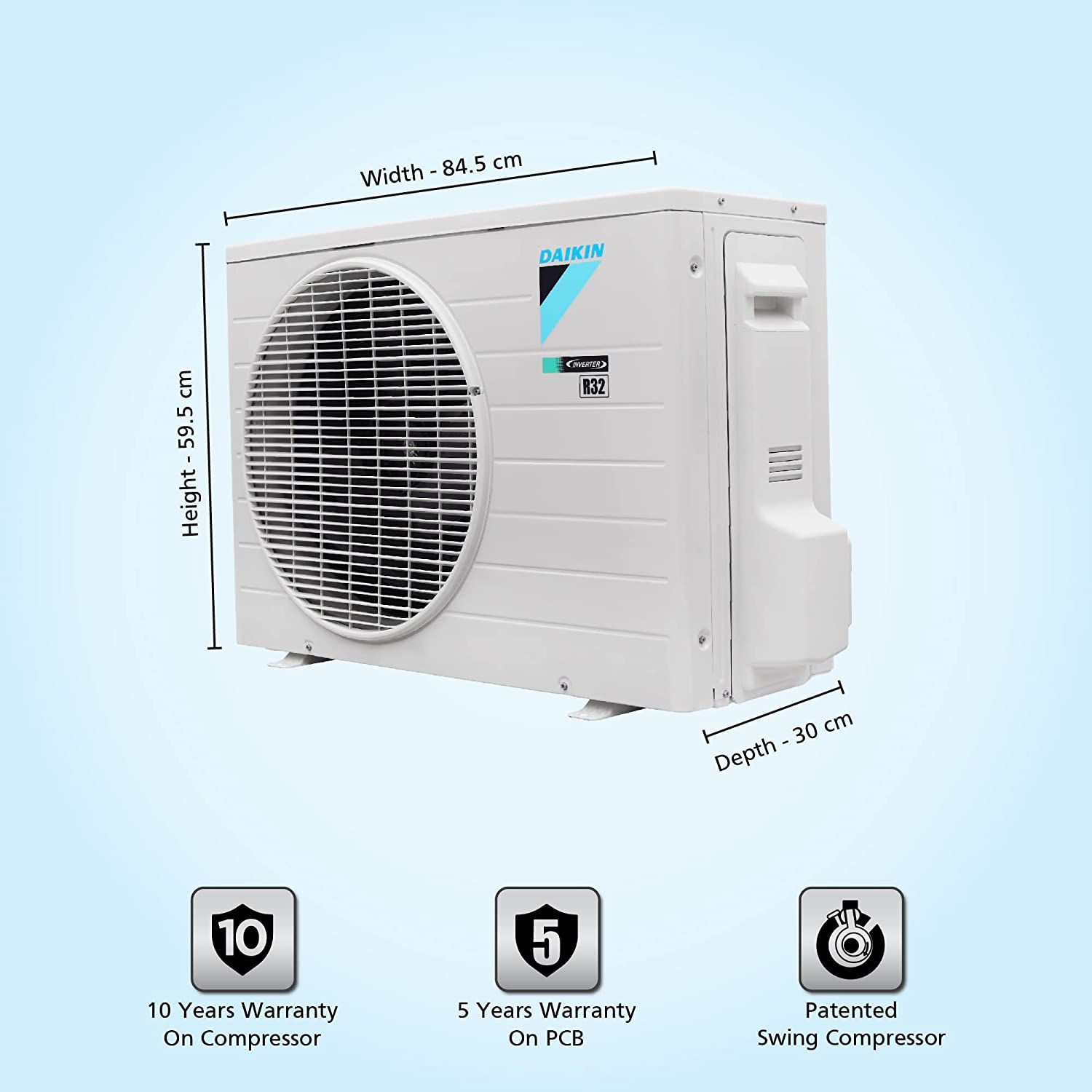

Casing Colour Ivory White Compressor Type Swing Compressor Dimensions (H x W x D) mm 595 x 845 x 300 Machine Weight (Kg) 33.5 Breaker size (A) 20 Piping Length - Charge-less (m) 10 Piping Length - Max. length (m) 25 Piping Length - Max. height (m) 20 Piping Connection (Gas/Liquid) mm (inch) ∅12.7/∅6.4 (1/2" ; 1/4") Operating Ambient Temperature Range Cooling (Min ~ Max) °CDB 20° ~ 54°
Made in india
