Description
It Goes in the Loft. That's the Whole Point.
35 L Horizontal · Blue Diamond® · 8 Bar.
A horizontal geyser for homes where there is no wall to put a vertical one · designed to fit into lofts and above false ceilings, out of sight, freeing the bathroom wall entirely · 35 litres — a serious capacity for multiple users and larger bathrooms — in a body that hides away · a Blue Diamond® glass-lined tank for corrosion resistance in the toughest water conditions · a glass-coated Incoloy heating element resisting the scale that ends ordinary elements in hard water · rated to 8 bar, so it suits high-rise buildings and strong water pressure · a long-lasting anode rod protecting the tank · 4 Star energy rating · 2 years comprehensive, 4 years on the element and 7 years on the tank · made in India
Goes
overheadloft or false ceiling
Most people don't know horizontal geysers exist, and then it solves a problem they'd assumed was unsolvable. In a modern apartment the bathroom wall is often already taken — by a mirror, a cabinet, a shower panel, or simply by the layout — and a 35-litre vertical geyser has nowhere to go. The HAS-X mounts horizontally, tucked into a loft or above a false ceiling, where it's invisible and takes no usable space at all. You get large-capacity hot water without giving up a square inch of the bathroom. If you're renovating, or fitting out a flat where the plumber has said 35 litres won't fit, this is the answer to that exact objection.
Seven years on the tank — and a hidden geyser needs that more, not less
A geyser has two components that end its life: the tank and the element. This one carries 7 years on the tank, 4 years on the element and 2 years comprehensive — against a category norm of roughly five and two. That matters especially here, because a unit installed above a false ceiling is harder to reach and more expensive to service, so you want the components least likely to need attention. The Blue Diamond® glass lining resists the internal corrosion that kills tanks in hard water, the glass-coated Incoloy element resists scale build-up, and a long-lasting anode rod corrodes sacrificially so the tank doesn't.
8 bar — the spec that decides whether it survives your building
Water pressure in a multi-storey building — especially on the lower floors of a tall block, or anywhere with a booster pump and overhead tank — runs considerably higher than in a ground-floor house. A tank not rated for that pressure is stressed every single day it runs. Eight bar is a high pressure rating for a domestic storage heater, and it means this unit is built for apartments and strong water flow rather than only low-rise homes. If you live in a tower or your building runs a pump, this is the number to check before you check anything else — including the brand on the front.
🛡️ What protects it
Blue Diamond®
Glass-lined tank
Incoloy Element
Glass coated, scale resistant
Anode Rod
Sacrificial tank protection
8 Bar Rated
Built for high-rise pressure
🎯 Right for
The horizontal format is designed to slip into a limited-height space — but the loft or ceiling void must be strong enough and accessible. Send us the available dimensions and we'll confirm the fit before you order.
✨ At a glance
Worth knowing: a horizontal geyser is slightly less thermally efficient than a vertical one of the same size, because hot water stratifies less effectively lying down. You're trading a little efficiency for space you couldn't otherwise use — a good trade when there's no wall, and the wrong one when there is.
Enough hot water for consecutive showers and a larger bathroom, from a unit nobody can see.
Blue Diamond® lining and an Incoloy element are AO Smith's answer to Delhi's water — the reason the tank warranty runs to seven years.
The anode protects the tank by corroding itself. On a ceiling-mounted unit, plan access for that service before installation.
A specialist water heater brand with dedicated service, and our team coordinating installation and any visit across Delhi NCR.
| Brand / Model | AO Smith HAS-X · 35 L horizontal ✅ |
| Type | Horizontal storage water heater ✅ |
| Capacity | 35 Litres ✅ |
| Mounting | Horizontal — designed for lofts and above false ceilings ✅ |
| Energy Rating | 4 Star ✅ |
| Inner Tank | Blue Diamond® glass lined ✅ |
| Heating Element | Glass-coated Incoloy — scale resistant ✅ |
| Anode Rod | Long lasting ✅ |
| Rated Water Pressure | 8 Bar — suitable for high-rise buildings ✅ |
| Colour | White ✅ |
| Country of Origin | Made in India 🇮🇳 ✅ |
| Warranty — Tank | 7 Years ✅ |
| Warranty — Element | 4 Years ✅ |
| Warranty — Product | 2 Years Comprehensive ✅ |
Why buy from Mahajan Electronics?
- 📏 We'll confirm the loft or ceiling fit first
- 🔧 Qualified installation support arranged
- 24-hour delivery across Delhi NCR
- GST invoice — save up to 18% on business purchases
- 45+ years of trust · rated 4.7 on Google
- Raja Garden · Jail Road · Dabri Mor
Order today. Delivered in 24 hours.

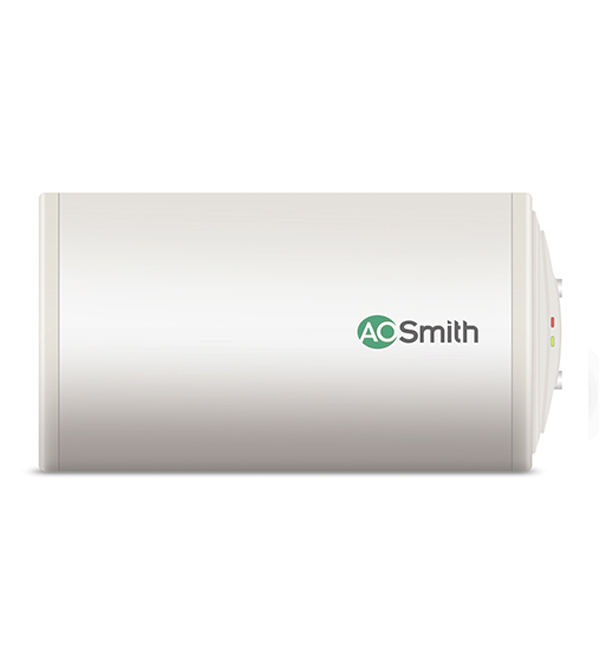

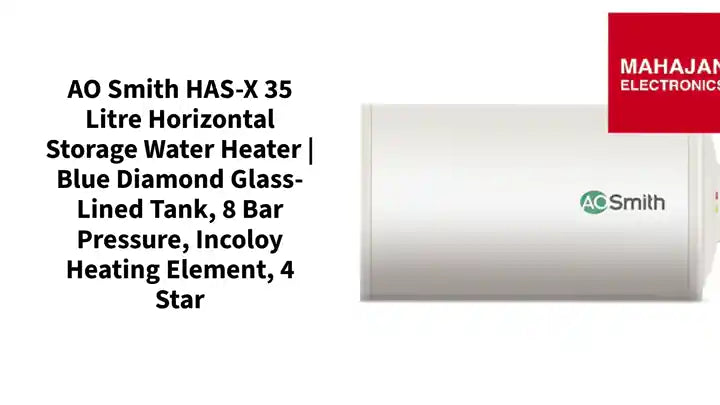

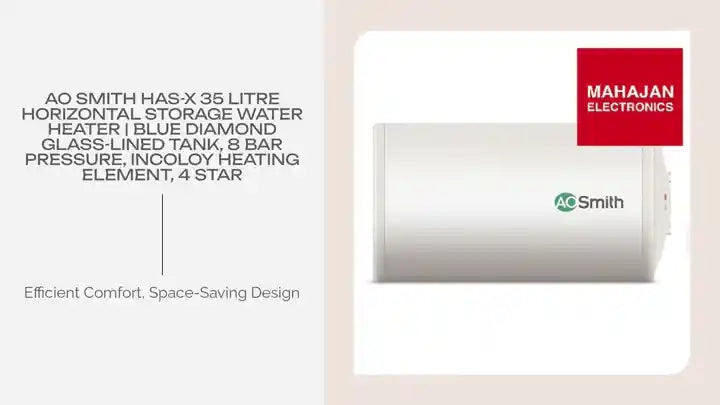

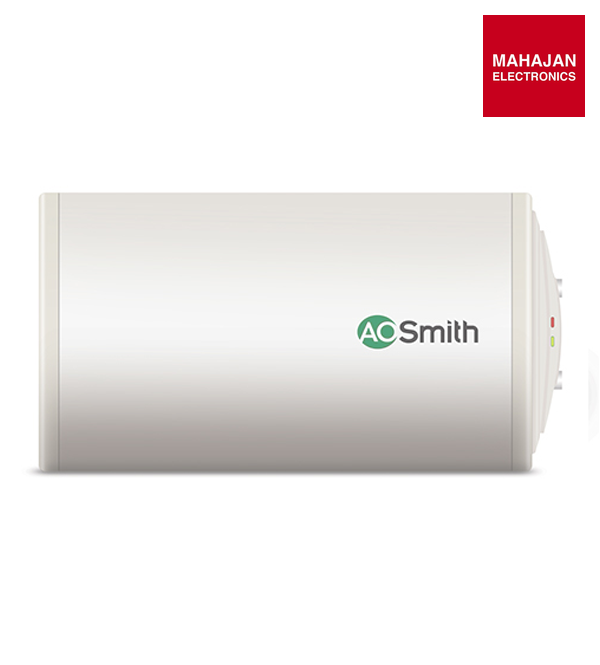

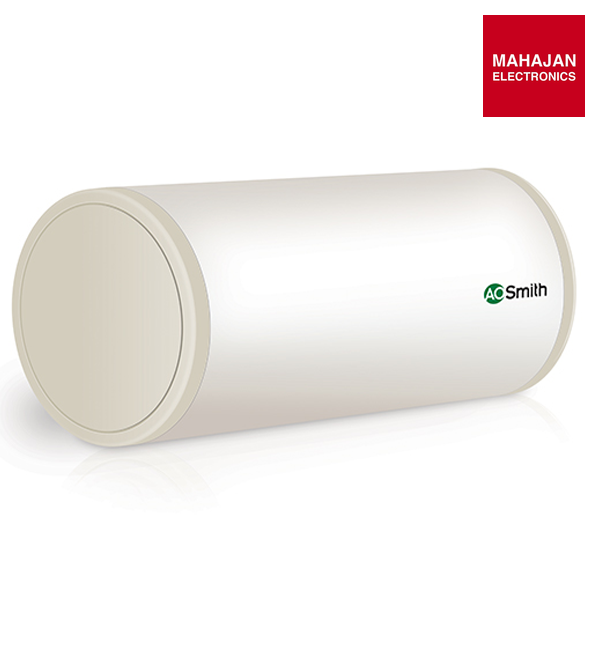

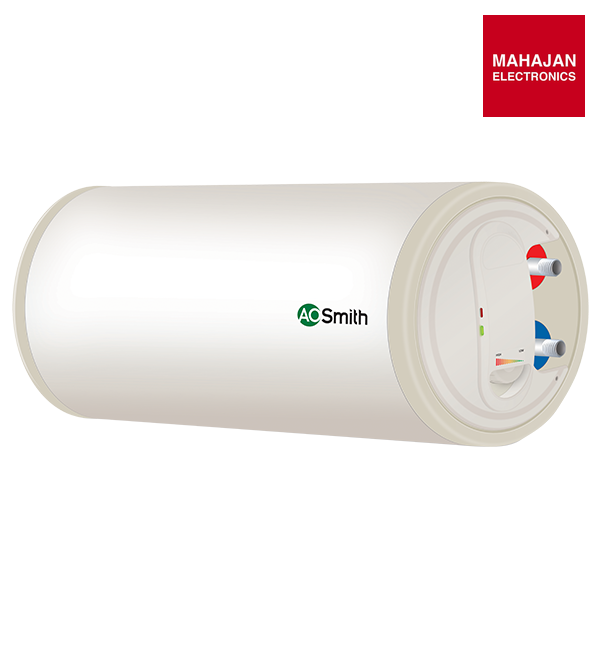

AO Smith HAS-X · 35 Litre Horizontal Storage Water Heater · Blue Diamond® Glass-Lined Tank · Glass-Coated Incoloy Element · 8 Bar Pressure · 4 Star · White
Warranty as per AO Smith's terms and conditions — 7 years on the tank, 4 years on the heating element and 2 years comprehensive on the product, subject to T&C; please refer to the final invoice or warranty card for exact coverage, exclusions and service process. Anode rod replacement and periodic servicing may be required to maintain tank warranty validity. Heating time, hot water availability, energy consumption and component life vary with inlet water temperature, water hardness, water pressure, plumbing layout, voltage conditions, installation quality, usage pattern and maintenance. Installation must be carried out by a qualified technician with proper earthing, MCB and a correctly fitted pressure release valve; the loft or ceiling structure must support the full weight of a filled tank and allow service access. Do not operate without water in the tank. Image for reference only; actual serial number, manufacturing date and finish may vary by batch.
Please Note: The image shown is for reference purposes only. Actual product details, including the serial number and manufacturing date, may vary.
