Description
Even, surround airflow

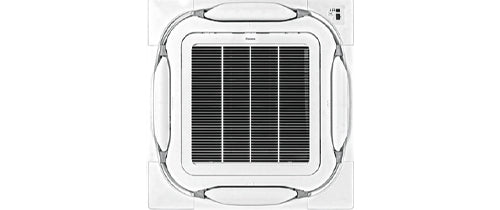

from a ceiling cassette — 1.5 Ton, R-32.
Round flow cassette AC · cooling only · non-inverter · 5.3 kW rated cooling · 2 Star · ISEER 3.65 · Power Chill · Fresh Air Intake · Branch Duct Connection · Night Quiet Operation · Surround Air Flow · Rotary compressor
Four additional vents for air drafts provide enhanced air coverage, and automatic air swing delivers air even in high-ceiling rooms. Daikin's technology-enabled cassette air conditioners give even airflow personalised to your space — ideal for offices, showrooms, clinics and large living areas.
Power Chill Operation
The system operates at maximum efficiency for powerful cooling for 20 minutes, bringing a hot room down quickly.
Fresh Air Intake & Branch Duct Connection
Provide air-conditioning with fresh air from outside — convenient where a ventilation fan cannot be installed. Branch duct connection improves airflow distribution around obstructions and allows air-conditioning of two rooms simultaneously.
⚙️ Salient features
Power Chill
20 minutes of maximum cooling
Fresh Air Intake
Outside air into the room
Branch Duct
Cool two rooms at once
Night Quiet
Automatic quiet mode at night
The automatic night quiet mode starts 8 hours after the peak daytime temperature is reached, and normal operation resumes 10 hours after that.
Indoor sound level of 37 / 34.5 / 32 / 29.5 / 27.5 dB(A) across fan speeds H / HM / M / ML / L.
Uses R-32 refrigerant with a rotary compressor in the outdoor unit; certified operation range 19 °C to 48 °C.
Wireless remote and wired remote available as options.
| Brand / Series | Daikin FCQF-C Series · Round Flow Cassette · Cooling Only · Non-Inverter ✅ |
| Indoor / Outdoor Unit | FCQF18CV16 / RGVF18CV16 ✅ |

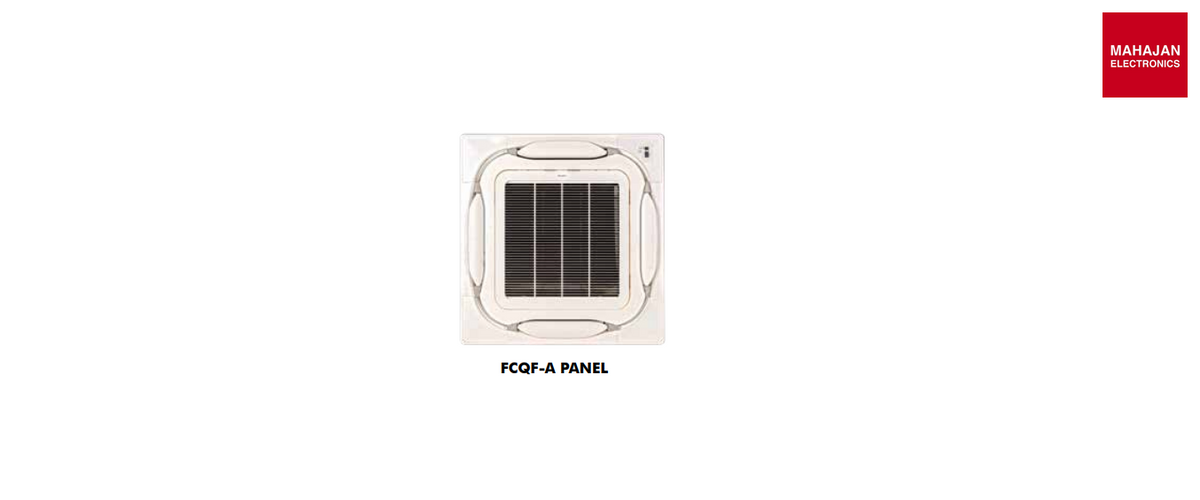

| Panel | 50 × 950 × 950 mm · 5.5 kg ✅ |
| Nominal Capacity | 1.5 TR ✅ |
| Rated Cooling Capacity | 5.3 kW ✅ |
| Rated Power Consumption | 1.45 kW ✅ |
| Annual Power Consumption | 1124 kWh ✅ |
| Star Rating / ISEER | 2 Star · 3.65 Wh/Wh ✅ |
| Power Supply | 1 Phase, 230 V, 50 Hz ✅ |
| Indoor Airflow (H/HM/M/ML/L) | 23 / 21 / 18.5 / 16 / 13.5 m³/min · 812 / 742 / 653 / 565 / 477 cfm ✅ |
| Indoor Sound (H/HM/M/ML/L) | 37 / 34.5 / 32 / 29.5 / 27.5 dB(A) ✅ |
| Indoor Unit Dimensions (H × W × D) | 256 × 840 × 840 mm · 22 kg ✅ |
| Drain | VP25 (I.D. 25, O.D. 32) ✅ |
| Compressor | Rotary · 1.3 kW motor output ✅ |
| Refrigerant | R-32 · 1.09 kg charge ✅ |
| Outdoor Sound | 56 dB(A) ✅ |

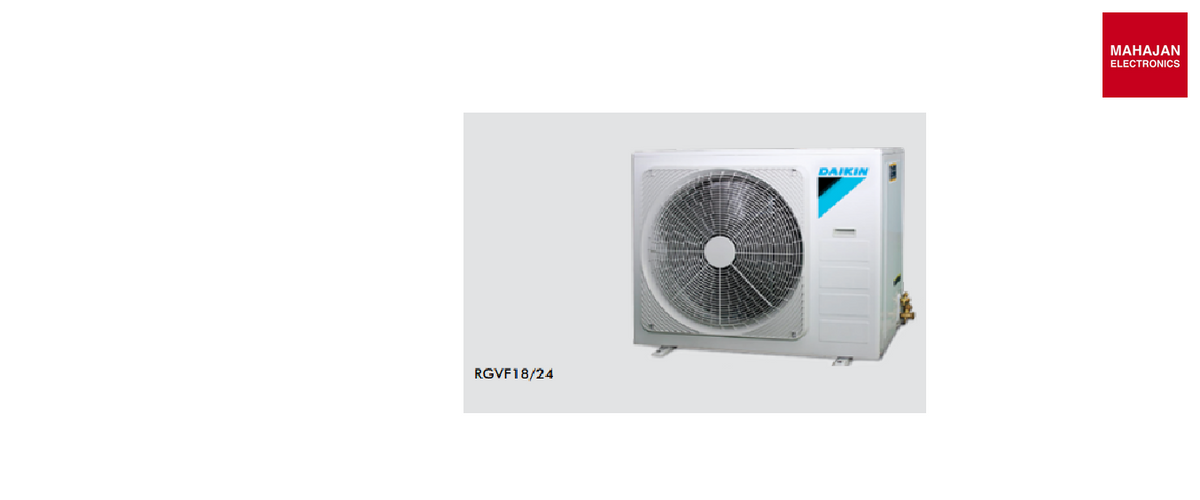

| Outdoor Unit Dimensions (H × W × D) | 595 × 845 × 300 mm · 40 kg ✅ |
| Operation Range | 19 to 48 °CDB ✅ |
| Piping (Liquid / Gas) | 6.35 mm / 12.7 mm (flare) ✅ |
| Max. Piping Length / Level Difference | 20 m / 10 m ✅ |
| Remote | Wireless (optional) · Wired (optional) ✅ |
Why buy from Mahajan Electronics?
- 100% genuine Daikin — authorised dealer
- 45+ years of trusted electronics retail, since 1981
- Delivery and installation support across Delhi NCR
- GST invoice — save up to 18% on business purchases
- Mahajan seller invoice with every unit
- Raja Garden · Jail Road · Dabri Mor
Enquire today for your office or home.
Daikin FCQF18CV16 · 1.5 Ton · Round Flow Cassette · 2 Star · R-32 · Power Chill · Fresh Air Intake
Rated cooling capacity at indoor 27 °CDB / 19 °CWB, outdoor 35 °CDB, 7.5 m piping. Remotes are optional. Product image, accessories, features and specifications may differ at the time of purchase. Image for reference only.
