Description
ECOVACS' most compact WINBOT.
Wipes to within 1 mm of the frame.
215 × 215 × 55 mm body · 8,000 Pa maximum suction power · Ultrasonic atomization spray · WIN-SLAM 4.0 path planning · Upgraded corner brushes on all four corners · 10-Tier Protection System · ECOVACS HOME App with close-range Bluetooth four-directional control

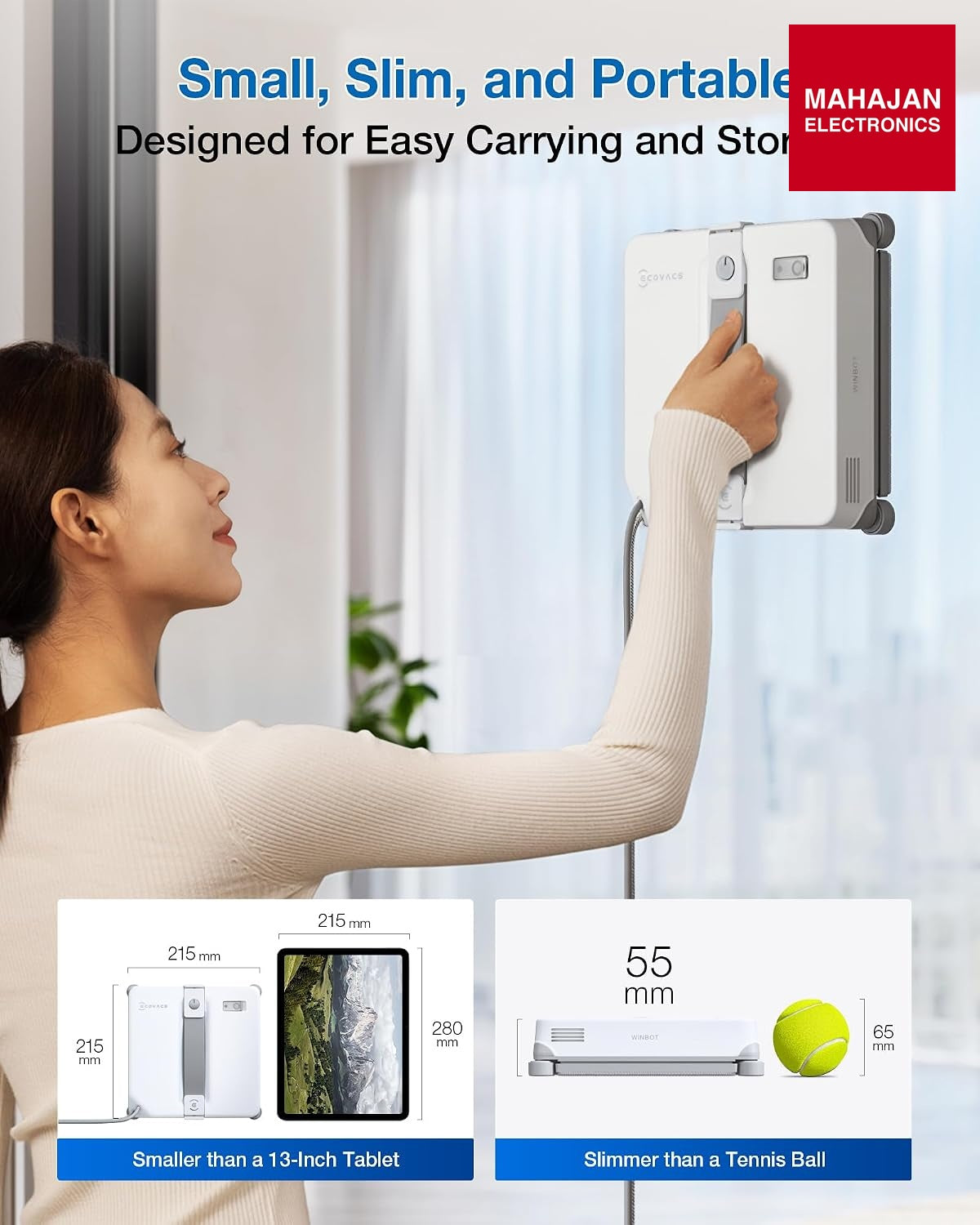

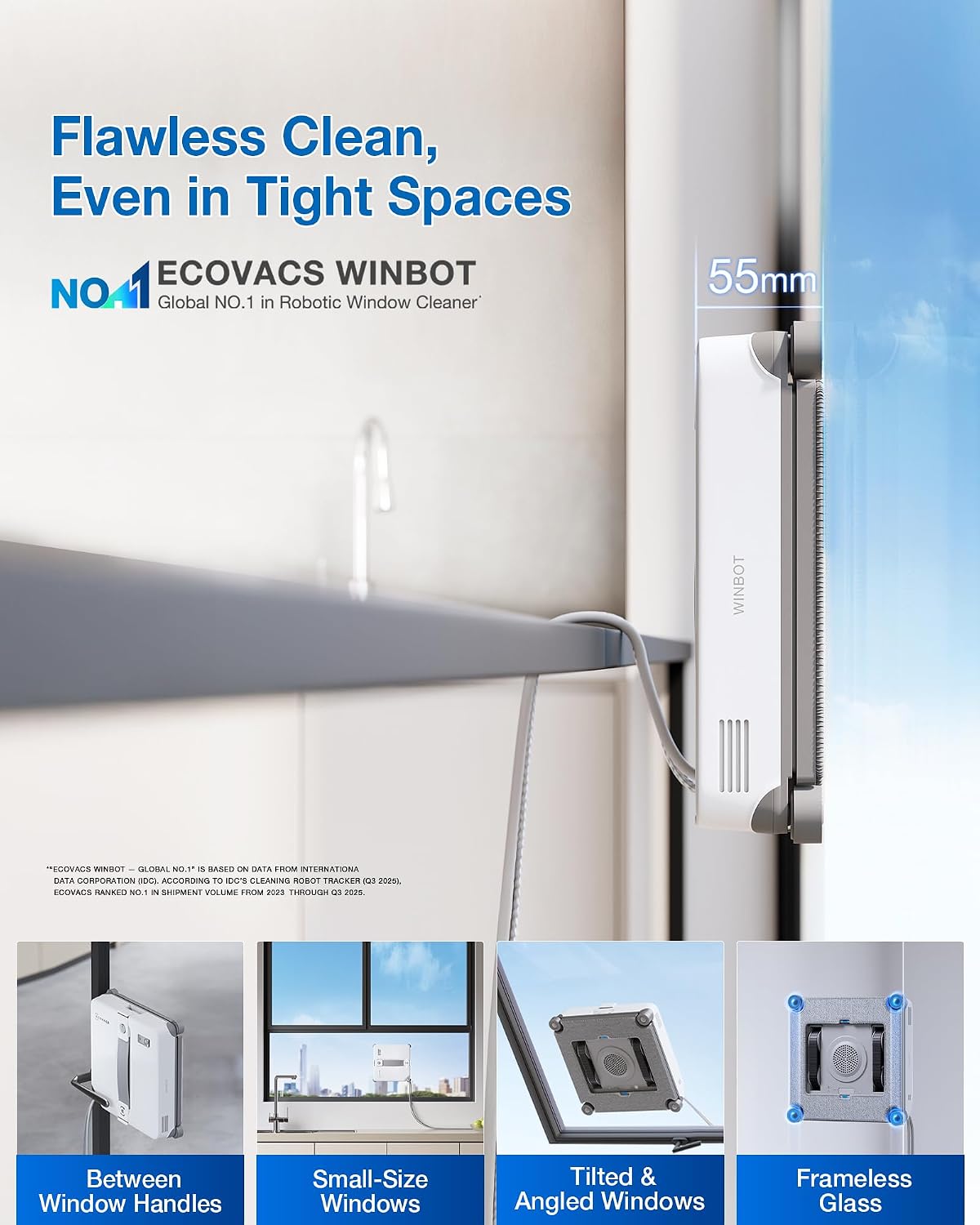

ECOVACS has re-engineered the WINBOT mini 2 with a highly integrated structure, streamlined components, and a developed compact fan, achieving a remarkably compact form without compromising performance. Measuring just 215 mm in side length and 55 mm thick, it is engineered to clean narrow windows and hard-to-reach areas. It adapts to frameless, floor-to-ceiling and tilting windows, and its compact, lightweight build fits neatly into any corner for storage.

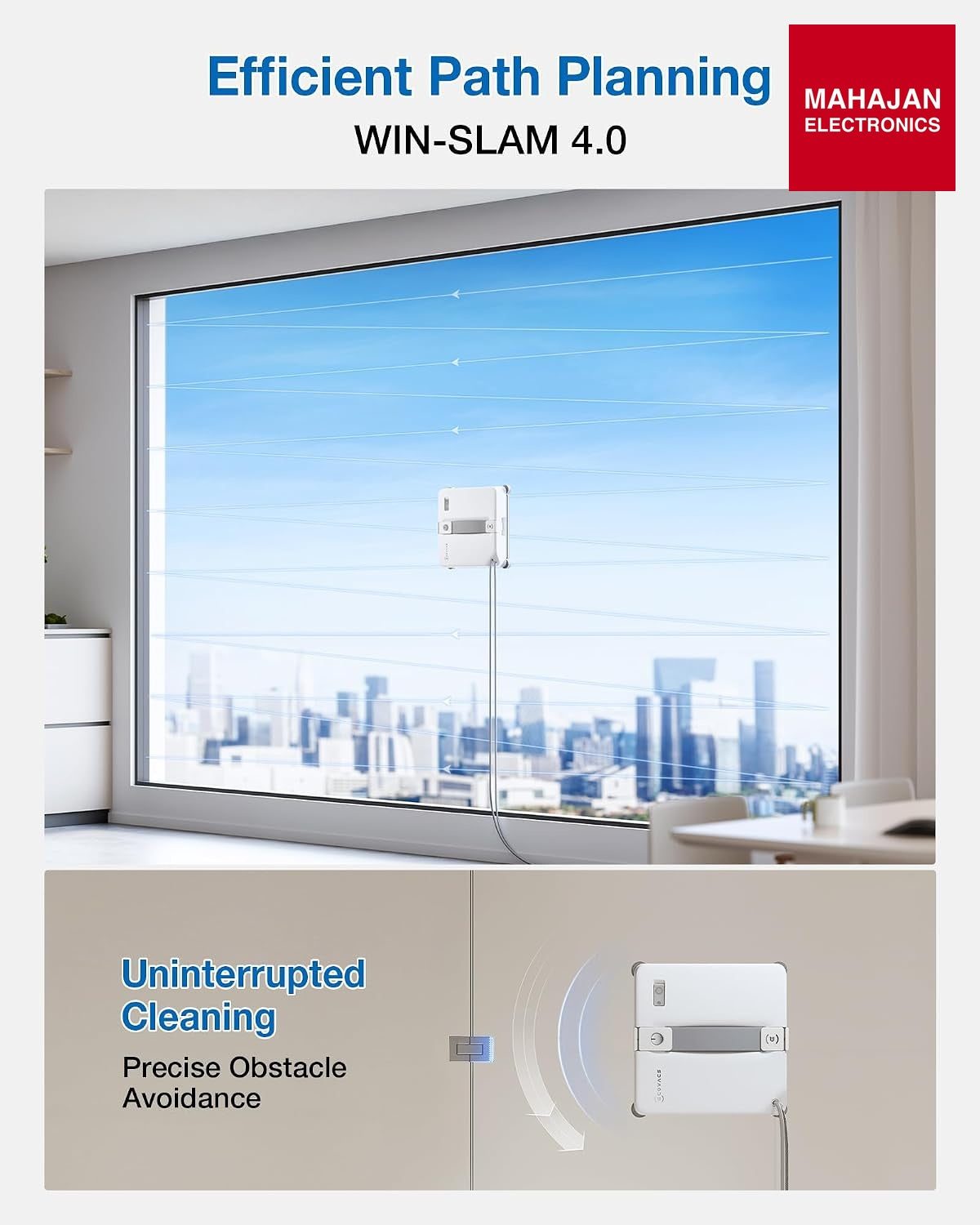

WIN-SLAM 4.0 — efficient path planning
Powered by the WIN-SLAM 4.0 algorithm, WINBOT mini 2 automatically plans the most efficient cleaning path, detects window frames and dimensions, and ensures full coverage with minimal effort. It features real-time obstacle and anti-stuck detection, automatically reversing in narrow spaces. Combined with raised-frame monitoring and air pressure sensing, it maintains an airtight cleaning path for consistent suction and smooth, reliable performance.
5 hardware-based fall protection measures
Its 8,000 Pa suction power ensures strong yet glass-safe adhesion, while the classic wiping pad design offers a closer fit and enhanced seal. The floating wiping pad plate cushions against external impacts and minimizes friction. In case of low battery, power-off protection keeps the robot attached for over 30 minutes. Additionally, the included nylon + latex safety rope withstands pull forces up to 1,600 N.
🔒 4-stage intelligent fall protection
Gravity Sensor
A gravity acceleration sensor maintains stable positioning at all times
Optocoupler Sensor
Detects edges with a 0.02-second response
Anti-Stuck Detection
Navigates around obstacles and escapes confined spaces
Pressure Compensation
Should air leakage occur, auto air pressure compensation responds within 0.04 seconds
📐 Erase every stain, reach every edge

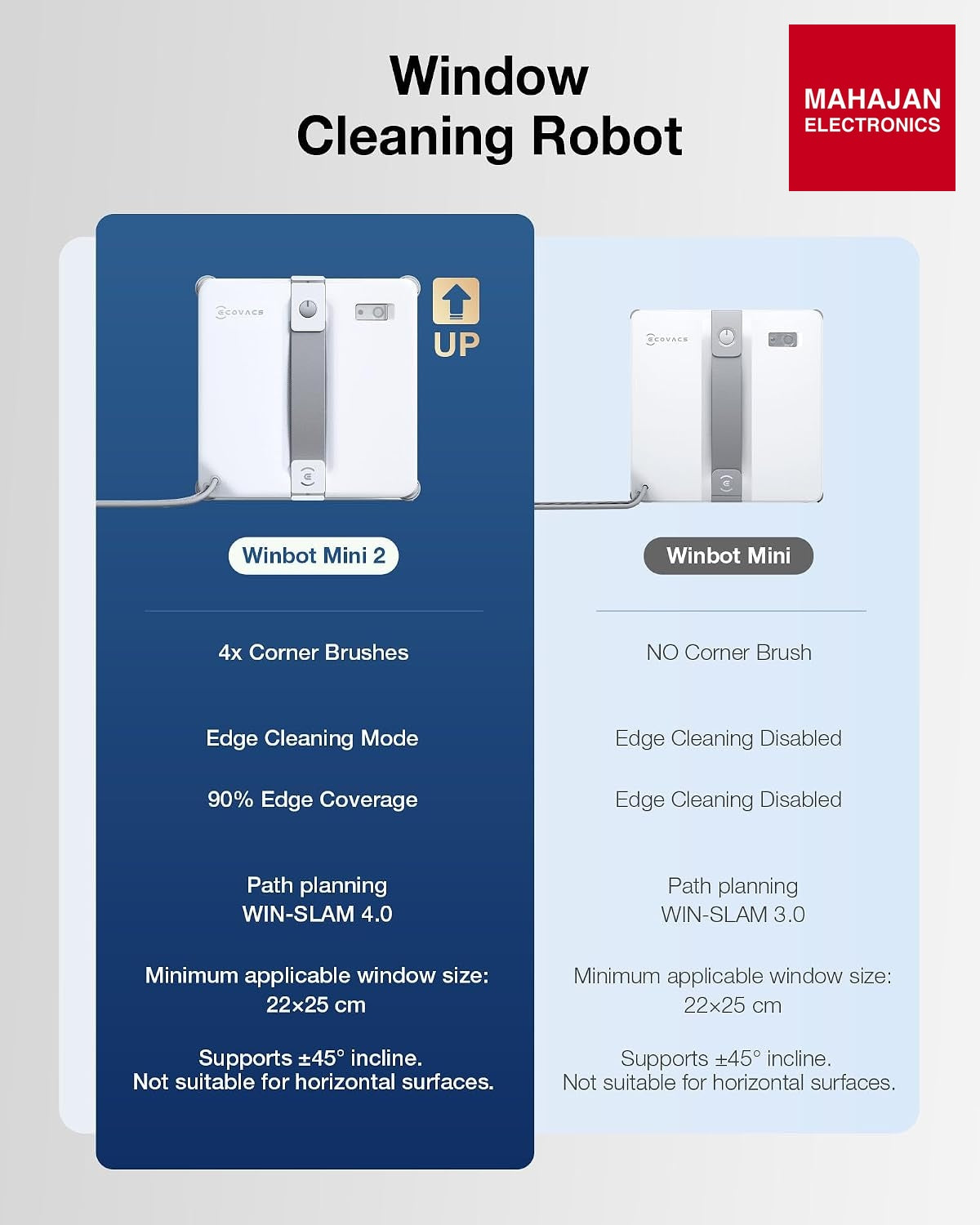

Upgraded Corner Brushes
High-density felt bristles on all four corners, driven at up to 84 RPM by friction with the frame
Ultra-Thin Side Wings
Enable precise access close to edges, achieving up to 90% edge coverage

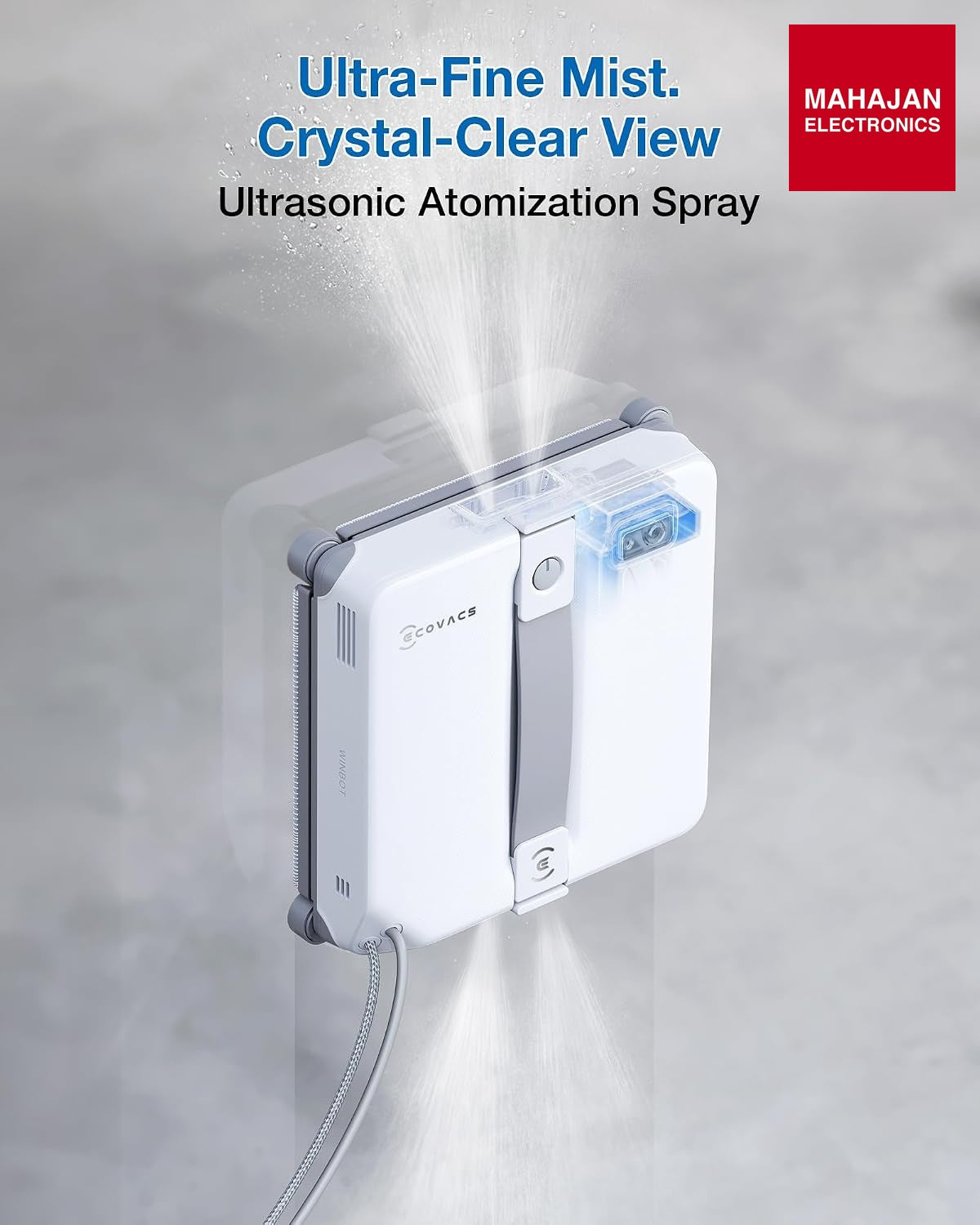

Ultrasonic Atomization
High-frequency vibrations transform water into an ultra-fine mist with droplets as small as 10 micrometers
🔄 Cleaning modes in the ECOVACS HOME App
Applicable to all types of flat windows, with frame and frameless, from a minimum window size of 25 × 25 cm and a minimum glass thickness of 3 mm.
Applies 14 N of downward force. Ultra-fine fibers and a porous structure offer high dust capacity, while water retention of 15 g capacity, up to 400% retention rate, keeps moisture distribution consistent across the glass.

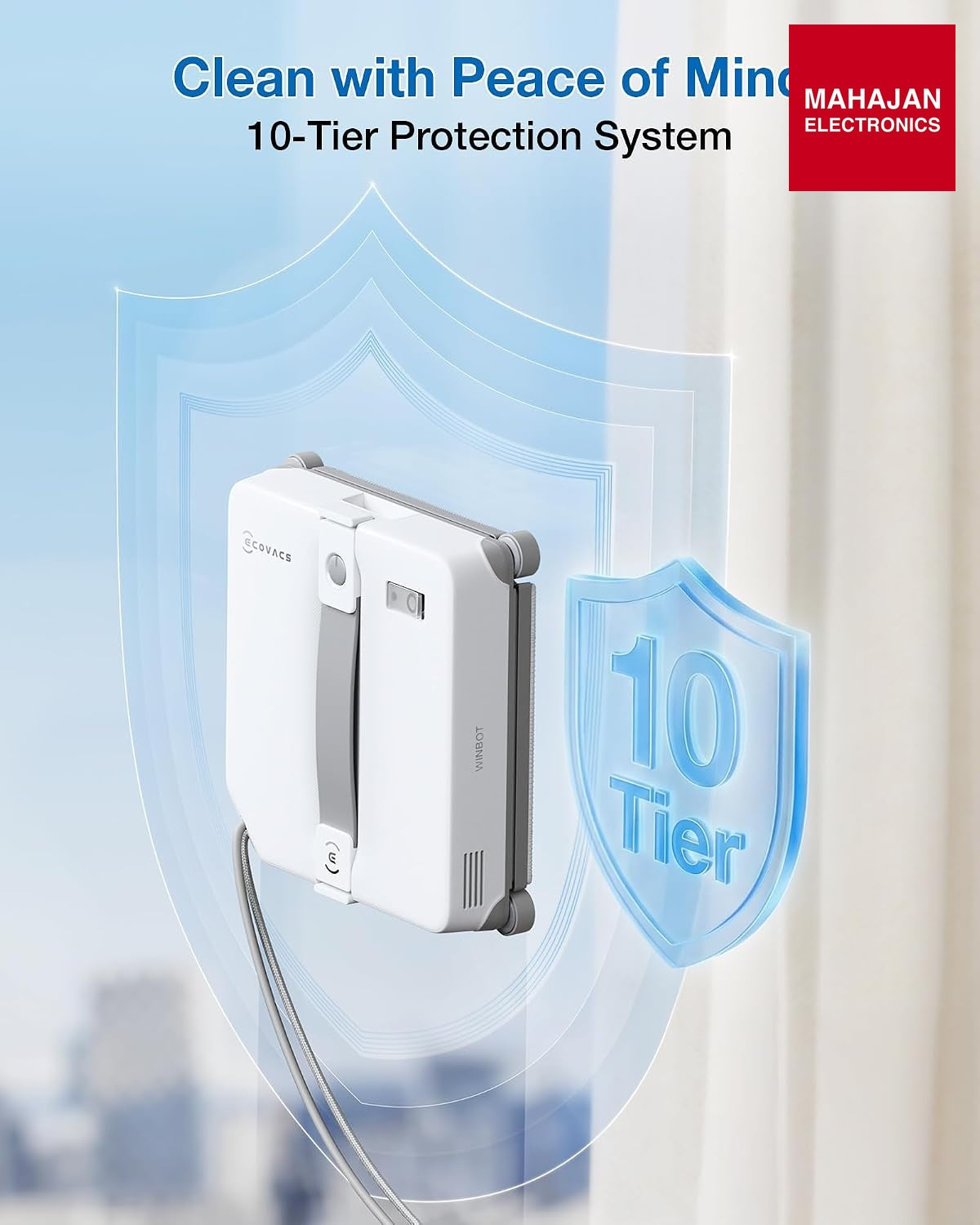

Multiple layers of security, from hardware to software, insured with commercial insurance. WINBOT mini 2 is backed by insurance protection in the unlikely event damage is caused by a loss of suction.

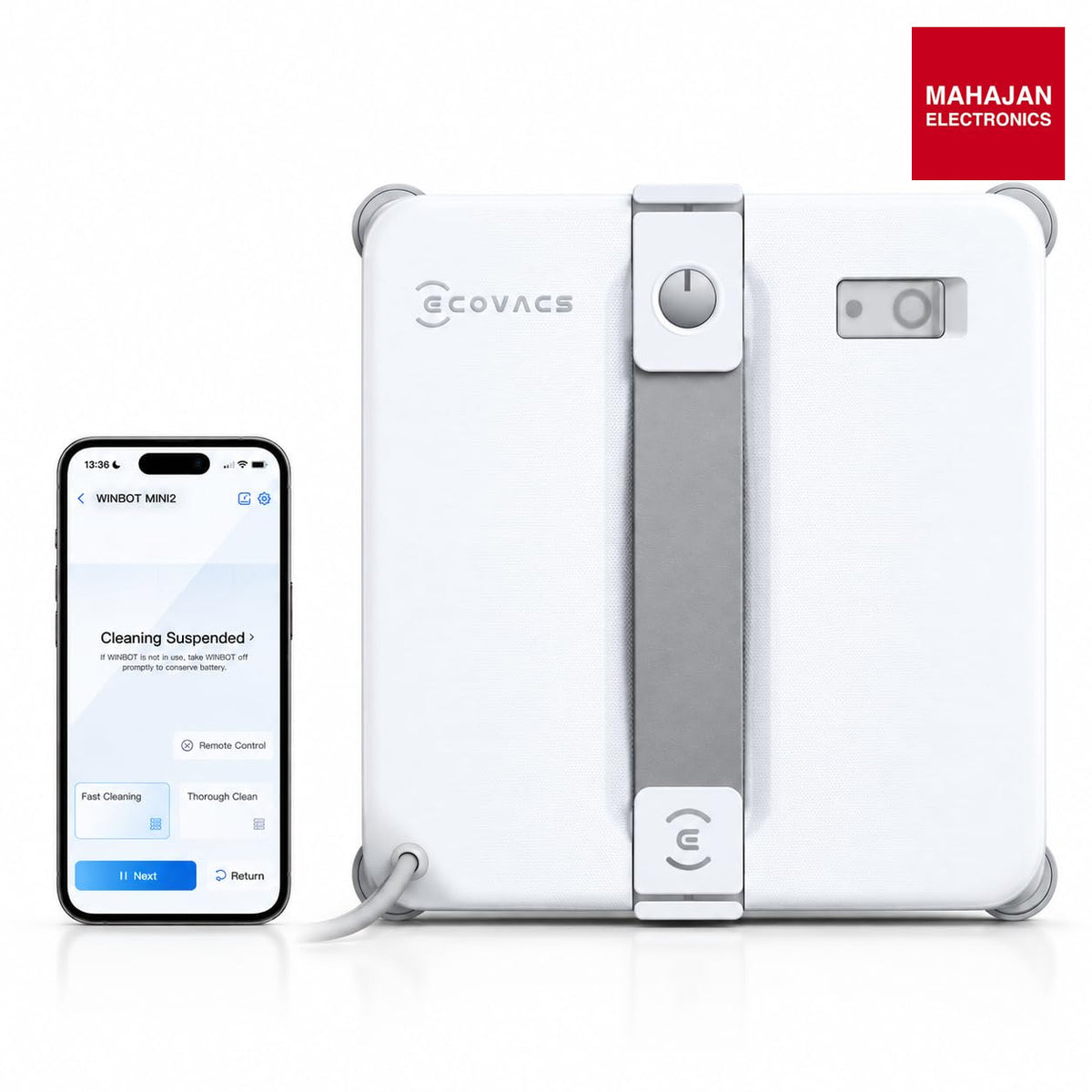

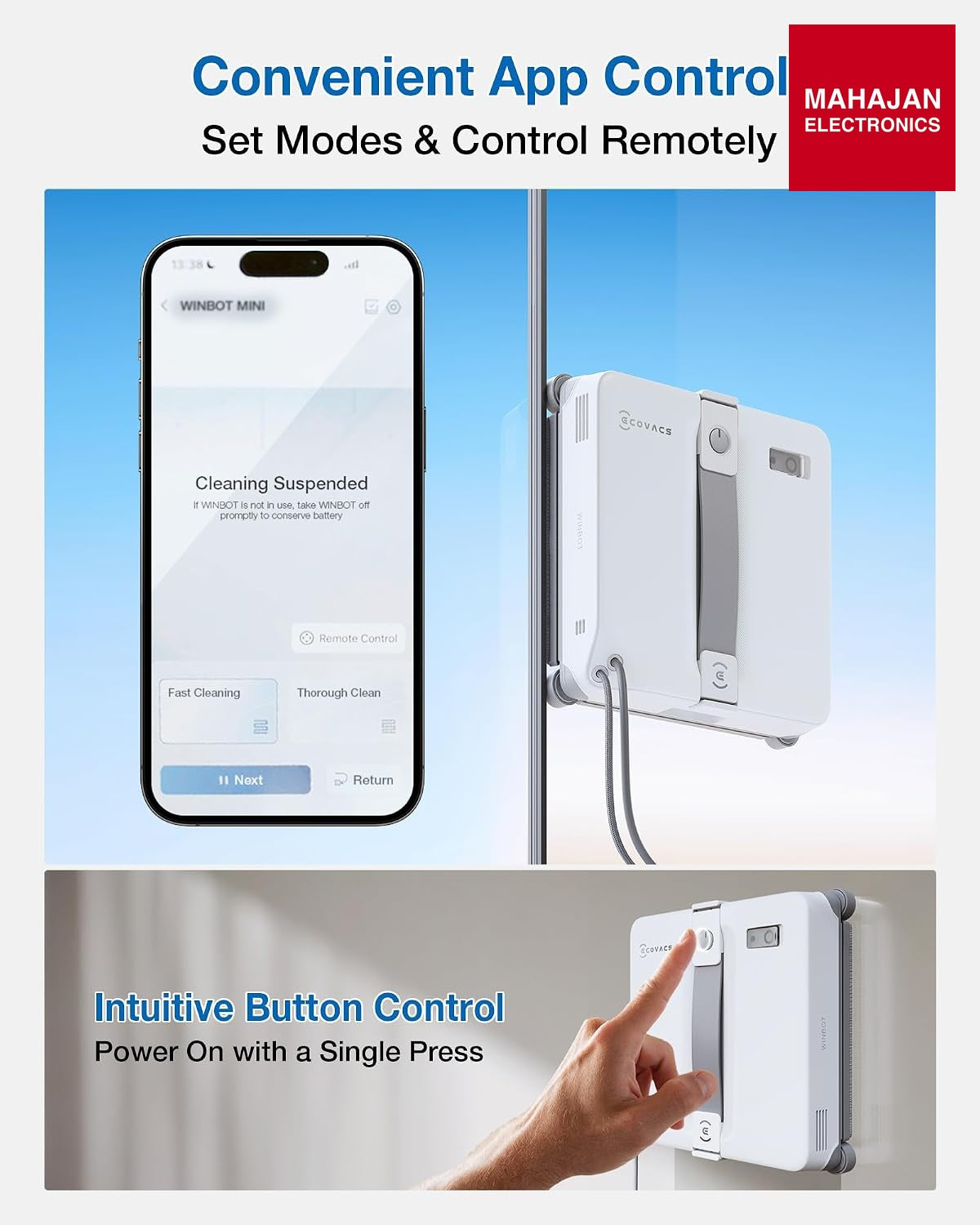

Preset cleaning modes in the app, plus a close-range Bluetooth signal that gives four-directional remote control for more accurate window cleaning.
| Brand / Model | ECOVACS WINBOT mini 2 |
| Type | Window Cleaning Robot |
| Dimension of WINBOT (L × W × H) | 215 × 215 × 55 mm |
| Weight of WINBOT | 1.3 ± 0.1 kg |
| Maximum suction power | 8,000 Pa |
| Suction power while moving | 3,400 Pa |
| Type of blower fan | Brushless motor |
| Path planning technology | WIN-SLAM 4.0 |

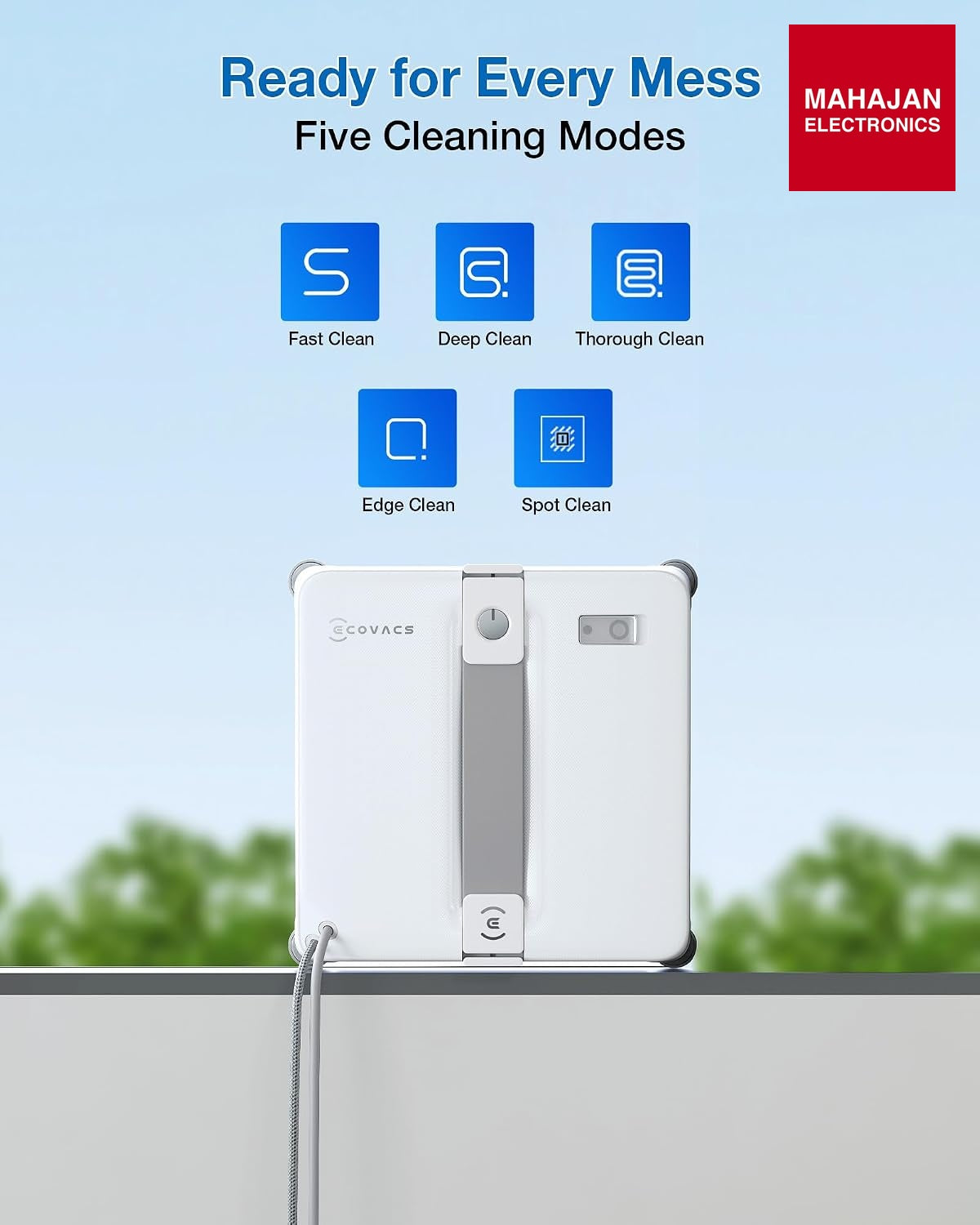

| Cleaning modes | Fast Clean · Thorough Clean · Spot Clean · Deep Clean · Edge Clean |
| Cleaning efficiency in default mode | 2 min 30 s ± 10 s per 1 × 1 m² (Fast Mode) |
| Method of spray | Ultrasonic Water Spray |
| Number of spray nozzles | 4 |
| Spray width | 8.5 cm |
| Spray length (front) | 10 cm |
| Water tank capacity | 50 ± 5 ml |
| Max. accumulated spray area per water tank | 30 m² (Fast Mode) |
| Material of wiping pad | Microfiber, both sides |
| Dimension of wiping pad | 215 × 214 mm |
| Wiping pad downward force | 14 N |
| Wiping pad water retention | 15 g capacity, up to 400% retention rate |
| Min. window size | 25 × 25 cm |
| Min. glass thickness | 3 mm |
| Applicable window type | All types of flat windows |
| Applicable frame type | With frame & frameless |
| Min. detectable height of obstacle | 2 mm |
| Min. detectable height of frame | 1 mm |
| Battery | Lithium 3,000 mAh · 1 built-in battery |
| Battery nominal voltage | 3.6 V |
| Rated power | 66 W |
| Rated voltage | 24 V |
| Charging time | 3 hours |
| Power-off protection duration | 30 min |
| Length of safety rope | 3.3 m |
| Total length of power cable | 4.7 m |
| Control | ECOVACS HOME App · Close-range Bluetooth four-directional control |
| Return to initial spot | Yes |
| Frame detection / frame distance detection | Yes |
| Breakpoint continuation | Yes |
| Intelligent climbing system | Yes |
| Water tank empty reminding | Yes |
| In the box | WINBOT × 1 · Power Adapter × 1 · Safety Rope × 1 · Carabiner × 1 · Wiping Pad × 2 · Cleaning Solution × 1 · User Manual × 1 |
