Description
It Cuts the Power Before Your AC Pays for It.
145V–280V · Copper Wound · HLC · Silent Relays.
The insurance policy on a machine that costs many times more than it does · High-Low Cut-Off protection that disconnects the supply automatically when voltage moves outside safe limits, rather than passing the damage to your compressor · a wide 145V to 280V input range, built for the voltage Indian supply actually delivers · a 100% copper-wound transformer for better conductivity and less heat than aluminium · microcontroller-based circuitry with DSP for fast, precise correction · silent EM relays with no thumping · a digital LED display showing input and output voltage · rated 10°C to 50°C · 2-year on-site warranty
✅ Check this matches your AC before ordering
This 5 KVA stabilizer is rated for one air conditioner up to 2 Ton:
It supports one AC — not two units on the same stabilizer, and not a 2 Ton plus other appliances. Above 2 Ton you need a higher rating. Tell us your AC's tonnage and model on 9710000251 and we'll confirm the right size before you order. Some ACs have a stabilizer built in and don't need one at all — worth checking first, and we'll tell you honestly.
HLCit cuts out entirely
A stabilizer corrects voltage within a range. What matters just as much is what it does when the supply goes beyond any range worth correcting. A severe surge or a deep sag will damage a compressor regardless of how well a transformer is trying to compensate — and the compressor is the part whose failure ends an air conditioner's life. High-Low Cut-Off protection handles exactly that: it disconnects the power supply automatically the moment input voltage exceeds or falls below safe limits, and reconnects when it's safe again. Your AC simply stops for a while instead of being harmed. On equipment costing many times what this does, that's the feature to insist on.
145V to 280V — the range that matters in Delhi
The working range is the specification that decides whether a stabilizer helps you or trips out exactly when you need it. Many are built for a narrow band and disconnect the moment supply strays — which in areas with frequent drops means an AC that keeps stopping. This one holds a steady output across 145V to 280V, a genuinely wide window covering both deep voltage drops and high surges. Behind it, microcontroller-based circuitry using digital signal processing delivers precise regulation with fast response — correcting in real time rather than in coarse steps, which is what protects a sensitive inverter AC's electronics as well as its compressor.
Silent EM relays — no thumping at two in the morning
Anyone who has owned an ordinary stabilizer knows the sound: a loud mechanical thump every time the voltage shifts and the relay switches. In a bedroom, on an unstable evening, it happens repeatedly and it wakes people. This unit uses high-quality electromagnetic relays that switch silently, so the correction happens without the noise. It's a small thing on paper and a significant one in practice — a stabilizer is mounted near the AC, which usually means near where someone is sleeping.
⚙️ Built for continuous duty
100% Copper Wound
Better conductivity and less heat than aluminium
Cooling Arrangement
Thermal management prevents overheating in long use
Microcontroller + DSP
Precise, fast correction rather than coarse steps
Digital LED Display
Live input and output voltage readings
🏠 Right for
Split & Window ACs
Anything up to 2 Ton capacity
Inverter ACs
Compatible with inverter and conventional units
Unstable Supply
Areas with frequent drops or surges
Shops & Offices
Commercial premises, with a GST invoice
✨ At a glance
The digital display is more useful than it first appears — showing input and output voltage side by side lets you see how bad your supply actually is, and confirm at a glance that the stabilizer is doing its job rather than sitting idle.
Copper windings conduct better and generate less heat, which means higher efficiency and a transformer that lasts — the reason this warrants two years on site.
Specified to keep working through a genuine Delhi summer, which is precisely when the AC is running hardest and the supply is least stable.
On-site rather than carry-in, with free service support — the only kind of warranty that's practical on something wall-mounted behind an AC.
Compatible with both inverter and conventional units, so it protects a modern AC's electronics as well as an older compressor.
| Brand / Model | Logicstat 5 KVA AVR — for AC up to 2 Ton ✅ |
| Power Rating | 5 KVA ✅ |
| Supported Load | 1 air conditioner up to 2 Ton ✅ |
| Input Voltage Range | 145V – 280V ✅ |
| Winding Material | 100% copper ✅ |
| Technology | Microcontroller based with digital signal processing ✅ |
| Protection | High-Low Cut-Off (HLC) · surge and spike protection ✅ |
| Relay Type | Silent electromagnetic (EM) relays ✅ |
| Display | LED digital — input and output voltage ✅ |
| Cooling | Built-in thermal management ✅ |
| Ambient Temperature | 10°C to 50°C ✅ |
| Mounting | Wall or floor mount ✅ |
| Compatibility | Inverter and conventional ACs ✅ |
| Country of Origin | Made in India 🇮🇳 ✅ |
| Warranty | 2 Years On-Site, including free service support ✅ |
Why buy from Mahajan Electronics?
- ⚡ We'll confirm the right rating for your AC
- Honest advice on whether you need one at all
- 24-hour delivery across Delhi NCR
- GST invoice — save up to 18% on business purchases
- 45+ years of trust in Delhi NCR
- Raja Garden · Jail Road · Dabri Mor
Order today. Delivered in 24 hours.

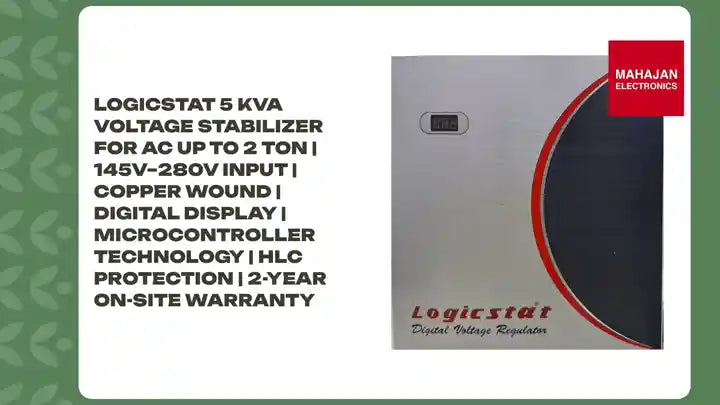

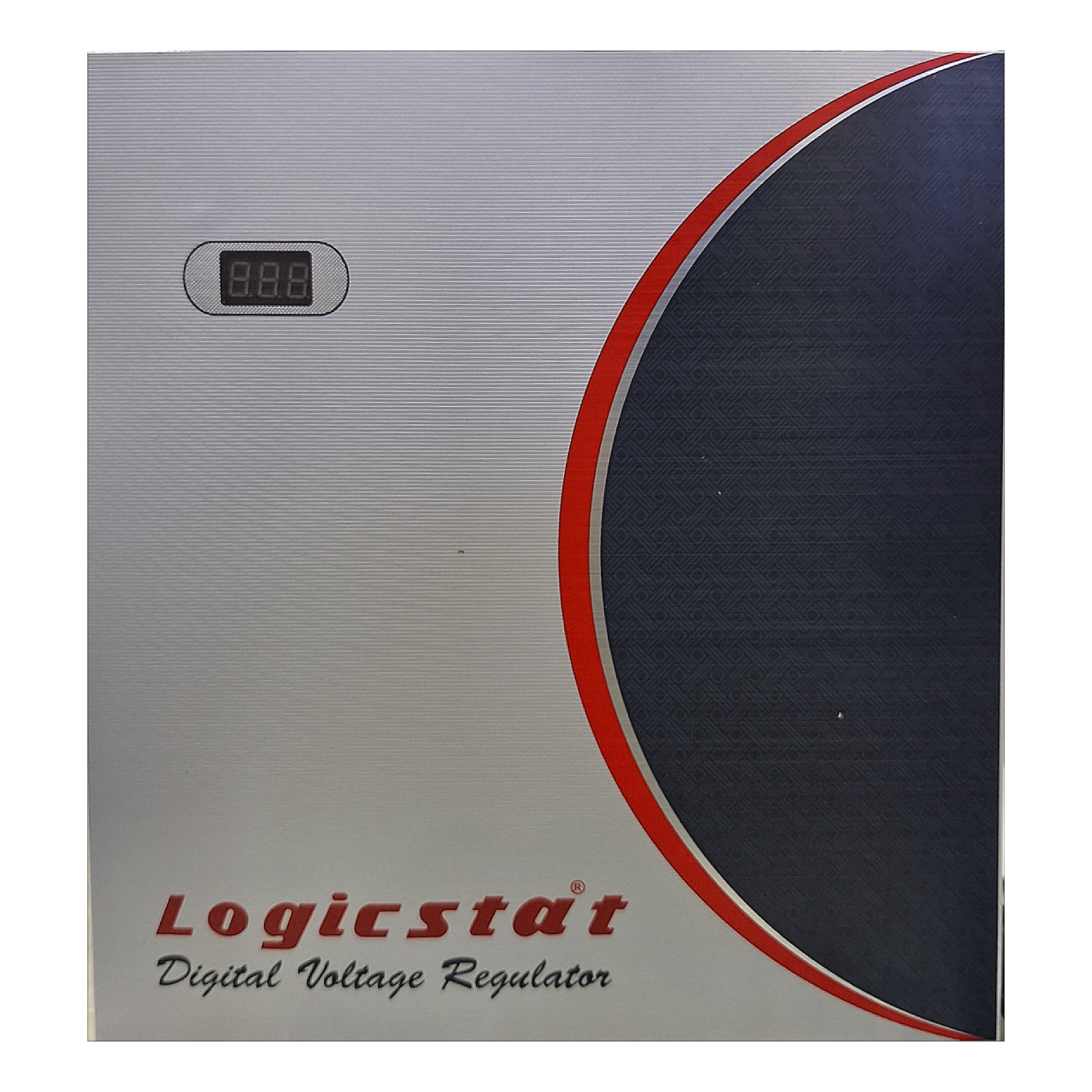

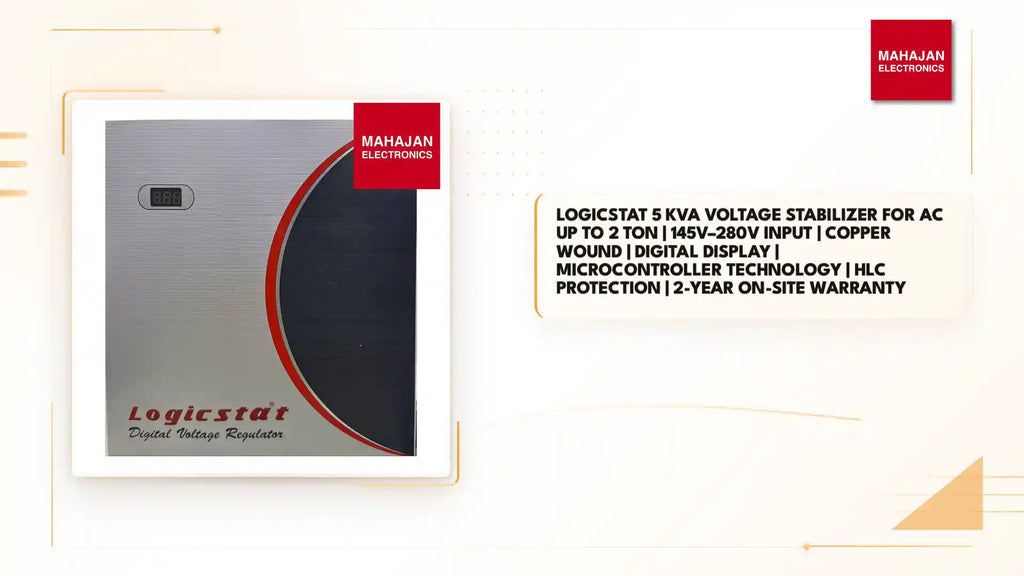

Logicstat 5 KVA Voltage Stabilizer · For AC up to 2 Ton · 145V–280V · 100% Copper Wound · HLC Protection · Silent EM Relays · Digital Display · 2-Year On-Site
Warranty terms apply as per Logicstat's policy. Electrical connection should be carried out by a qualified technician. Image for reference only.
