Description
All Deliveries made within 24 Hours (Business Hours) post receipt of order. Except Fridays (Weekly Off)
Get GST invoice and save upto 28 % on business purchases. T&C Apply.
All Split ac Installation Range - Rs1500+GST(For End user)
| Brand | Mitsubishi Electric |
| Capacity | 1.5 Tons |
| Cooling Power | 18000 British Thermal Units |
| Special Feature | Dust Filter |
| Product Dimensions | 22.8D x 83.8W x 28H Centimeters |
About this item
The code "MSY/MUY-JP18VF" appears to be related to a specific model or part number for a product, likely from a particular brand or manufacturer. To provide more detailed information, it would be helpful to know the context in which this code is used. Here are some possibilities:
-
Air Conditioning Units: Mitsubishi Electric, for instance, uses codes similar to this for their air conditioning units. "MSY" and "MUY" could refer to different series or types of indoor and outdoor units respectively. "JP18VF" could indicate a specific model or configuration within these series.
-
Electronics or Appliances: It could be a model number for a consumer electronic device or a household appliance.
-
Automotive Parts: Sometimes automotive parts have codes like these to identify specific models or components.

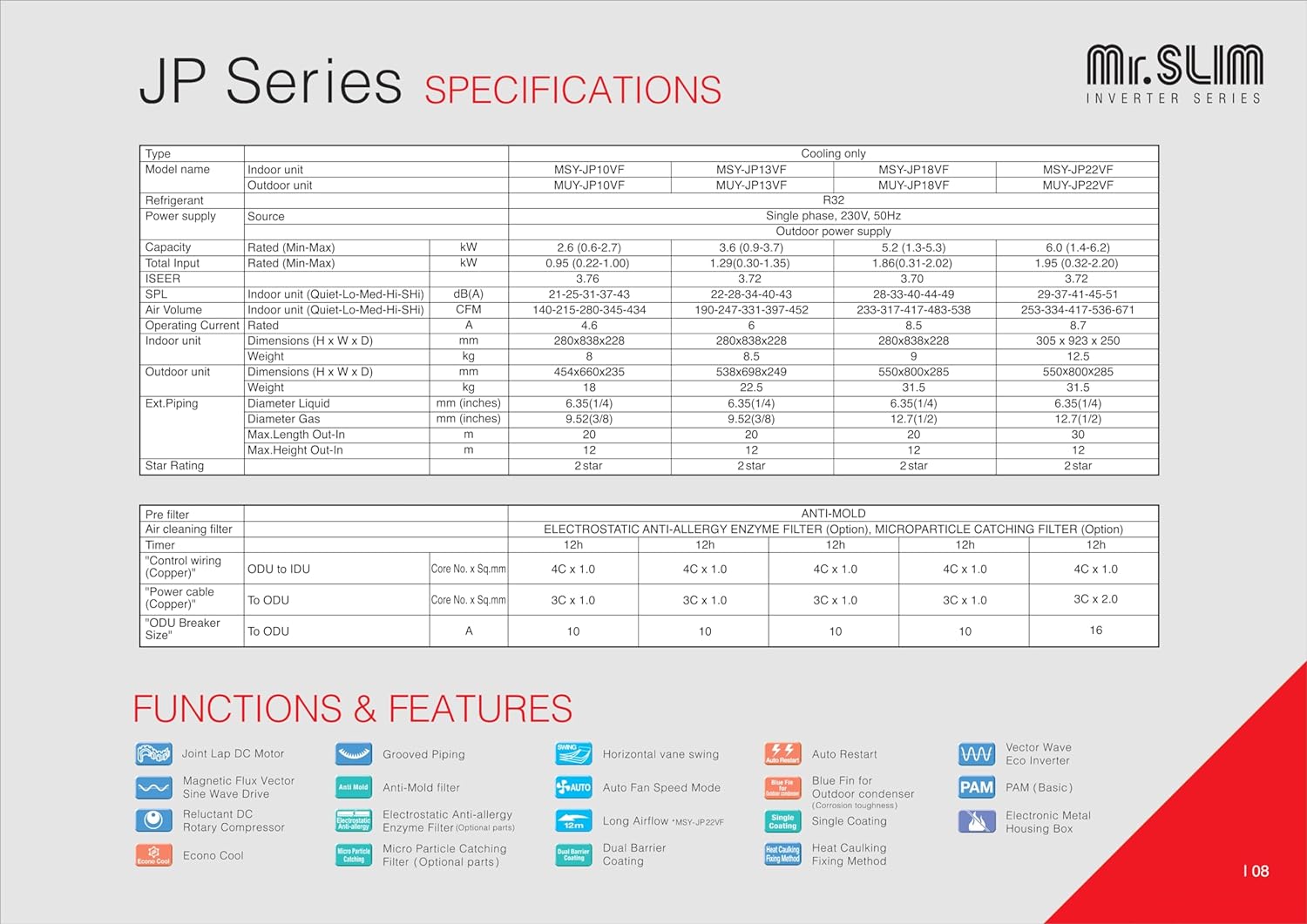

Technical Specifications
| Type (Cooling) |
|---|
| Indoor Unit |
| MSY-JP18VF |
| Outdoor Unit |
| MUY-JP18VF |
| Performance Parameters | |
|---|---|
| Capacity (Tr) | 1.5 Tr |
| Star Rating - As Per BEE | 2 Star
|
| Power Supply | 230 V / 50 Hz / Single Phase |
| Capacity (Rated Min-Max) | 5.2(1.3-5.3)kW |
| Total Input (Rated Min-Max) | 1.86(0.31-2.02)kW |
| ISEER | 3.70 |
| Operating Current (A) | 8.5 |
| Air Volume (CFM) Indoor Unit(Silent-Low-Mid-Hi-SHi) | 233/317/417/483/538 |
| Compressor, Refrigerant & Ambient Operations | |
|---|---|
| SPL Indoor Unit(Silent-Low-Mid-Hi-SHi) dB(A) | 28/33/40/44/49 |
| Refrigerant | R32
|
| Dimensions & Weight | |||
|---|---|---|---|
| Indoor unit | Dimensions (H x W x D) | mm | 280x838x228 |
| Weight | kg | 9 | |
| Outdoor unit | Dimensions (H x W x D) | mm | 550x800x285 |
| Weight | kg | 31.5 | |
| Breaker Size (MCB required) | A | 10 | |
| Ext.Piping | Diameter Liquid | mm (inches) | 6.35(1/4) |
| Diameter Gas | mm (inches) | 12.7(1/2) | |
| Max.Length Out-In | m | 20 | |
| Max.Height Out-In | m | 12 | |
Made in india
