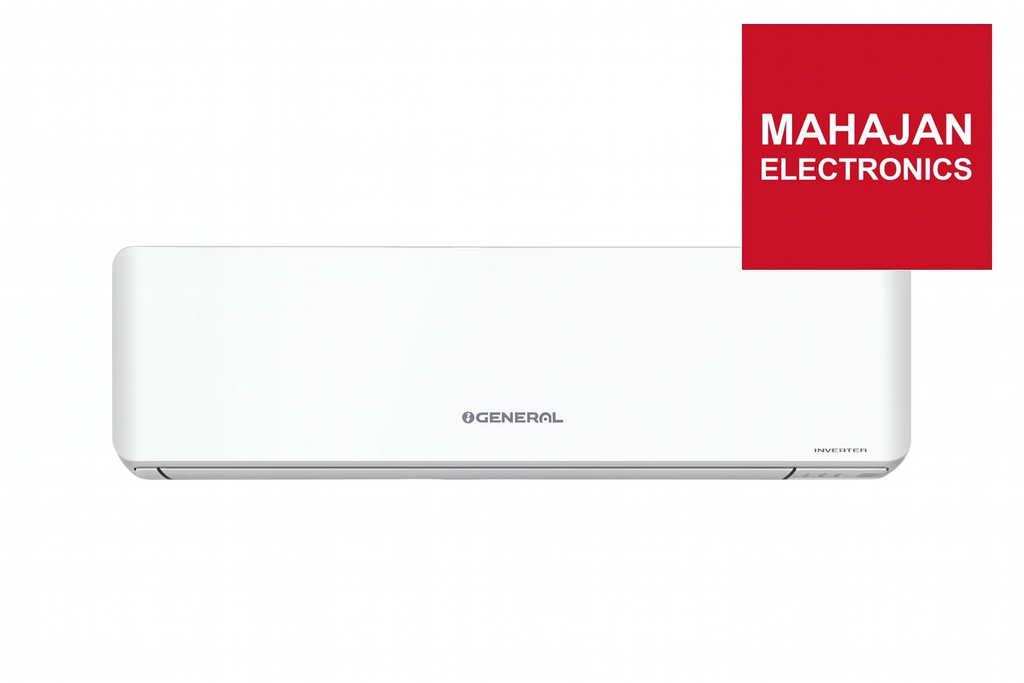

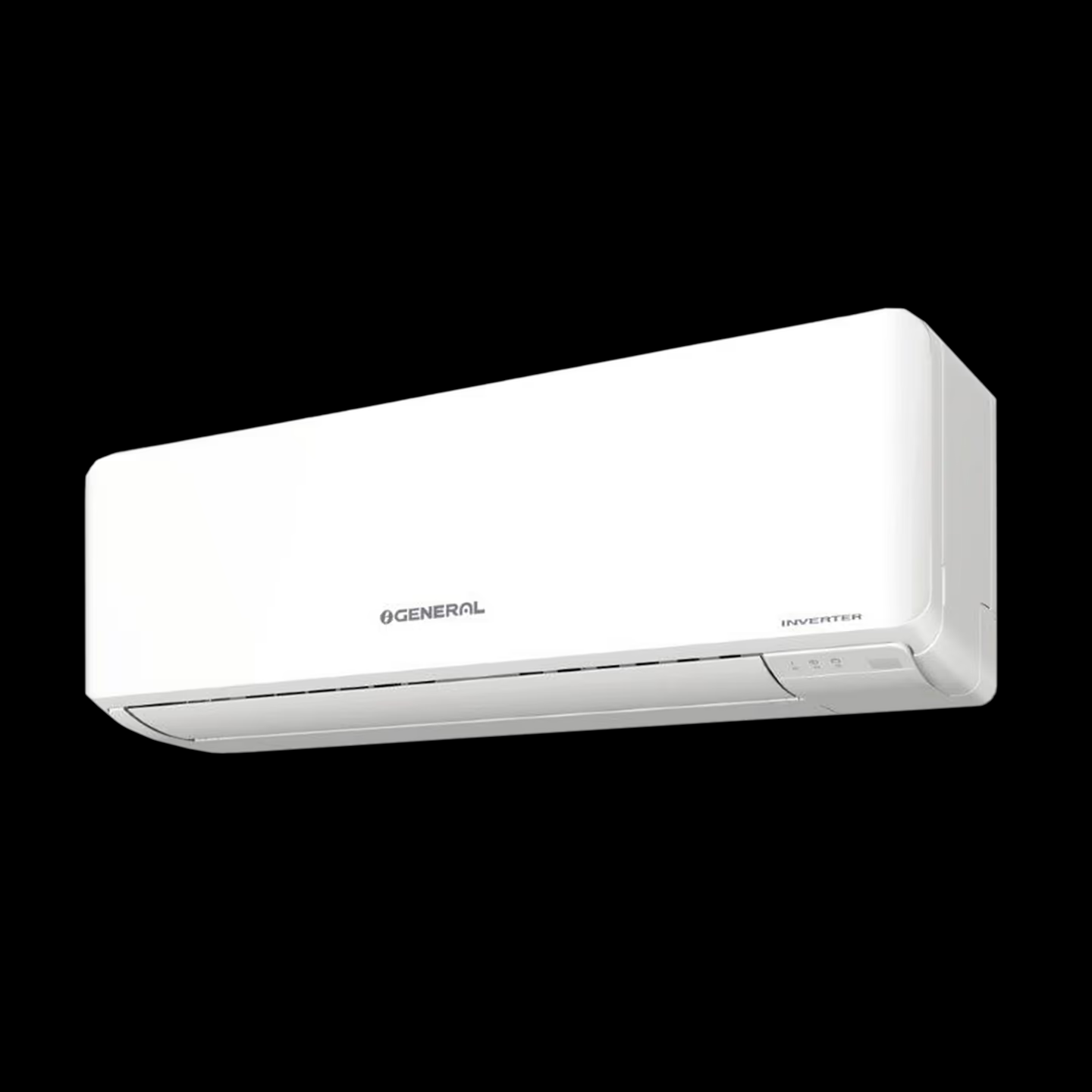

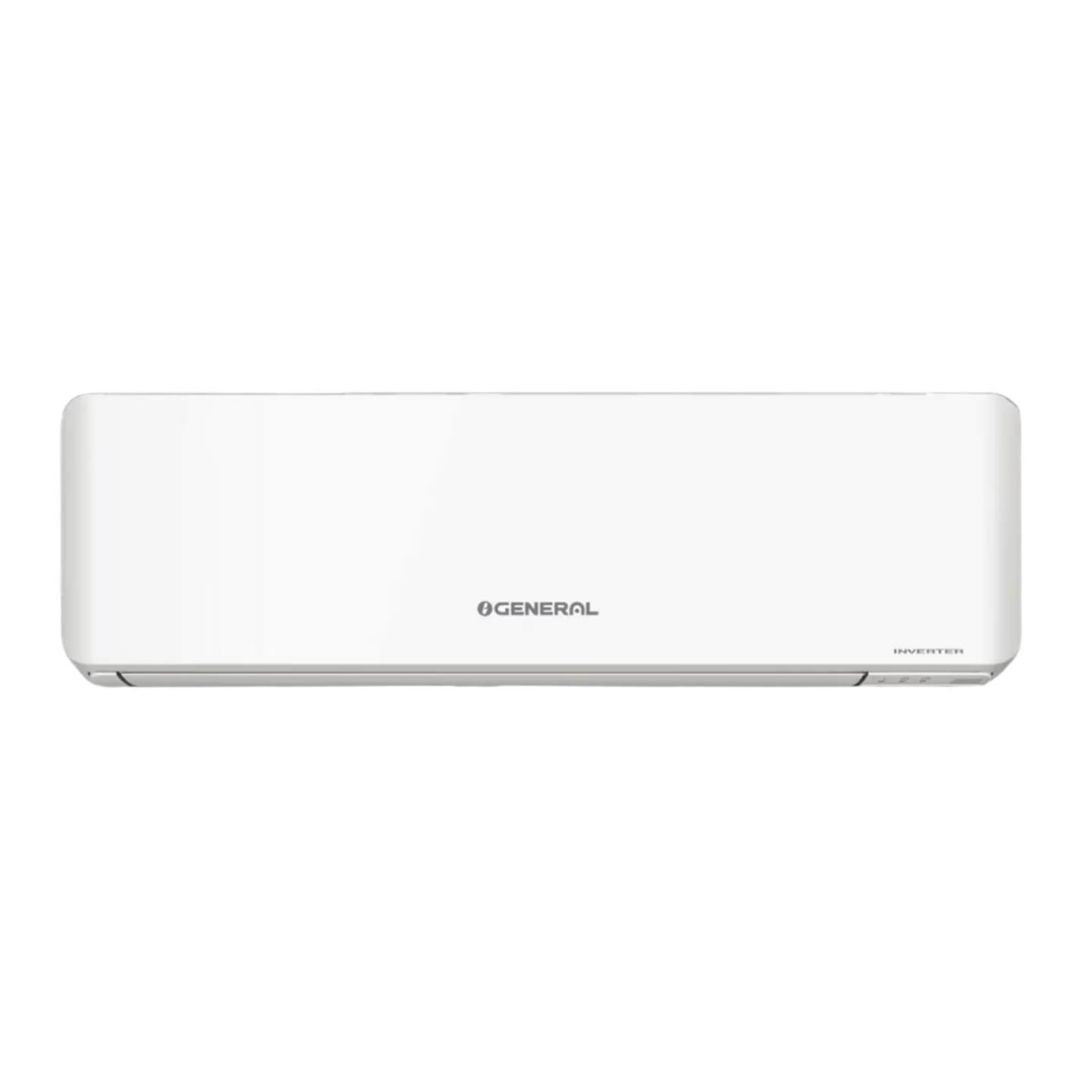

O General 1.5 Ton 3 Star ASGG18CPAB-B Inverter Split AC (Copper Condenser) 2025

AIR CONDITIONER CATEGORY

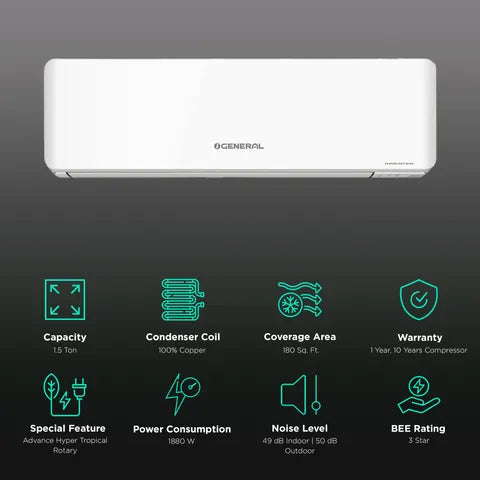

• Air Conditioner Type -  Split

• Air Conditioner Capacity - 1.5 Ton

• Approximate Coverage Area(Sq.Ft) - 180 Sq. Ft.

• Approximate Coverage Area(Sq.M) - 16.72 Sq.m

• Installation Type - Wall Mount

MANUFACTURER DETAILS

• Brand - O General

• Model Series - ASGG18CPAB-B

• Model Number - ASGG18CPAB-B

AIR CONDITIONER FEATURES

• Air Conditioner Modes - Powerful Mode

• Convertible Mode - No

• Air Flow Volume - 9.5 CFM

• Inverter Technology - Yes

• Cooling Capacity - 18000 BTU/H

• Ambient Temperature (Cooling/Heating) In Degree Celsius - 55

• Additional Air Conditioner Features - Advanced Hyper Tropical Rotary Compressor - 55 deg | Coanda Airflow Technology (15M) - 18 & 24 | Wide Voltage Range, Slicon Coated PCB & High Voltage Protection (700V - 12/18) | 5 Speed Fan Control, Quiet Operation, Higher Moisture Removal

AIR CONDITIONER FUNCTIONS

• Compressor Type - Advance Hyper Tropical Rotary

• Refrigerant Type - R32

• Noise Level (Indoor Unit) - 49dB

• Noise Level (Outdoor Unit) - 50dB

AIR CONDITIONER PHYSICAL ATTRIBUTES

• Connecting Pipe Type - Copper

• Connecting Pipe Length - 20 m

• Condenser Coil Type - Copper

• Louvers Swing Type - Up/Down

ENERGY STANDARDS

• Energy Efficiency(Star Rating) - 3 Star

AIR CONDITIONER PLUG DETAILS

• Power - 1880 W

• Voltage Rating - 250V

• Frequency - 50Hz

• Phase - Single

• Maximum Operating Temperature - 55 Degree Celsius

PRODUCT AESTHETICS

• Color - White

• Color Family - White

IN THE BOX

• Generic Name - Air Conditioner

• Main Product - 1 U Indoor Unit & Outdoor Unit

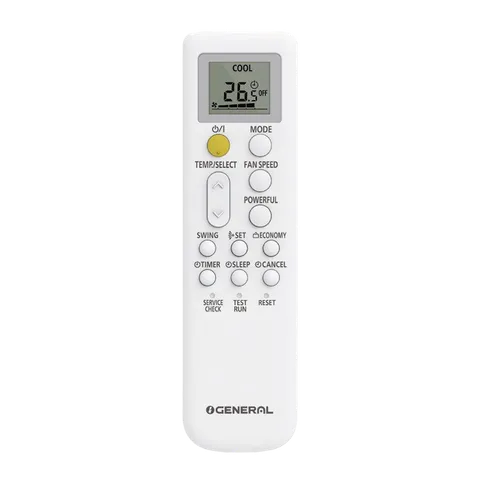

• Accessories - Remote | Connecting Pipe

• Documents - Warranty Documents

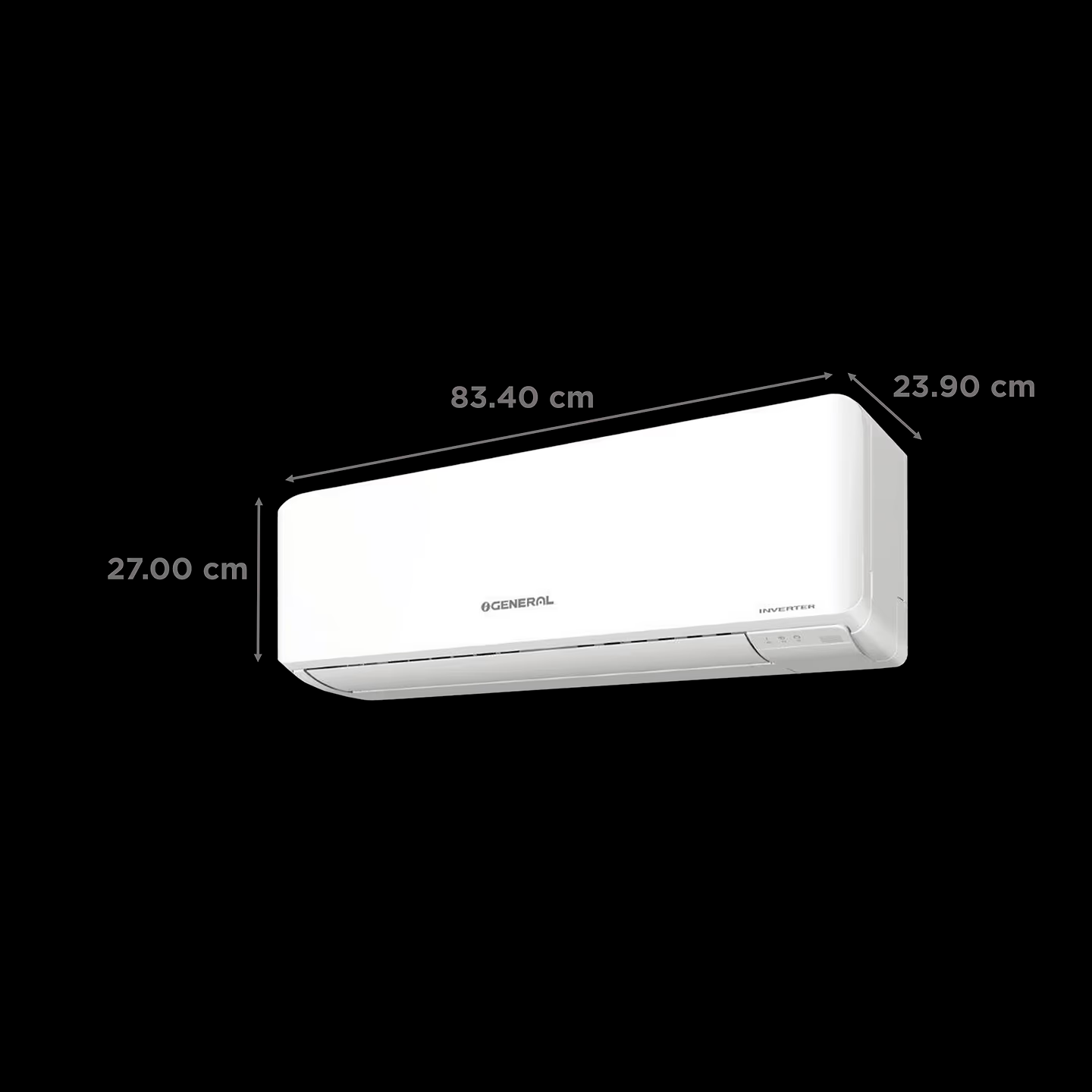

PRODUCT DIMENSIONS (OPEN)

• Dimensions in cm (WxDxH) - 120x40x110.5

• Dimensions in Inches (WxDxH) - 32.83 x 9.40 x 10.62

• Weight - 10.5 kg

PRODUCT DIMENSIONS OUTDOOR UNIT

• Dimensions in cm (WxDxH) - 66.30 x 29.00 x 54.10

• Dimensions in Inches (WxDxH) - 26.10 x 11.41 x 21.29

• Weight - 25 kg

PRODUCT PACKAGED DIMENSIONS

• Dimensions in cm (WxDxH) - 91.40 x 33.80 x 30.00

• Dimensions in Inches (WxDxH) - 35.98 x 13.30 x 11.81

• Weight - 13 kg

PRODUCT PACKAGED DIMENSIONS OUTDOOR UNIT

• Dimensions in cm (WxDxH) - 80.40 x 37.50 x 60.20

• Dimensions in Inches (WxDxH) - 31.64 x 14.76 x 23.70

• Weight - 30 kg

AFTER SALES & SERVICES

• Standard Warranty Period - 12 Months

• Additional Warranties - 1 Year Warranty on Condenser| 10 Years Warranty on Compressor

• Warranty Type - Onsite
