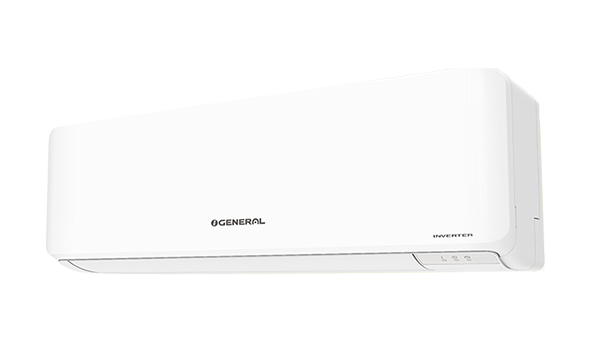

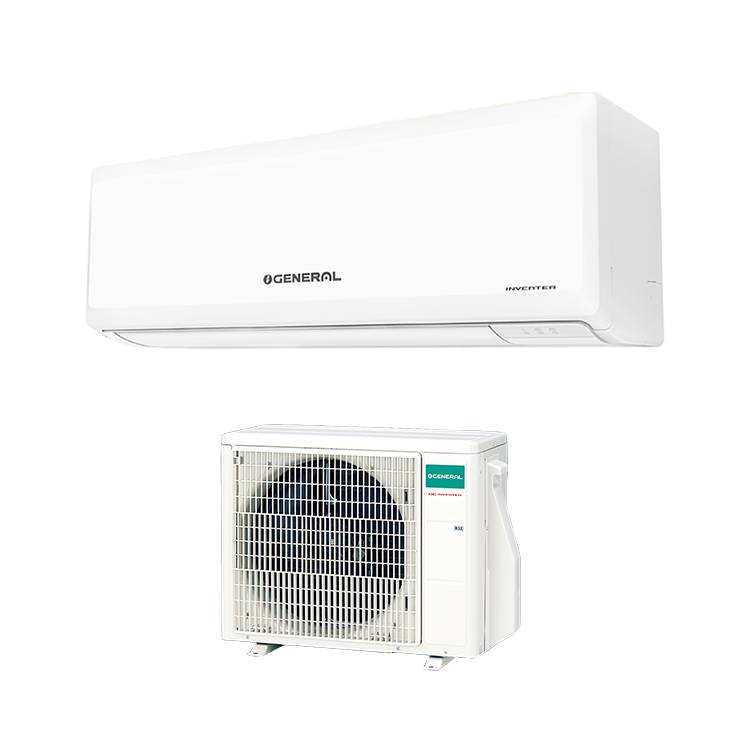

OGeneral Split Ac Inverter 1 ton 3star ASGG12CPTA/ASGG12CPTB

Powerful Cooling

High cooling capacity is maintained even at high temperatures of 46˚C

• High Temperature operation at 55°C
• 80% Cooling Capacity even at 46°C

Comfort Cooling with Full Inverter Technology ( 25% to 105% )

* 12k model

The input is greatly reduced by using a full inverter.

• Wide Capacity Range (25% to 102%) * 18k model

High Durability PCB

The upper limit of the operating voltage range was further increased to match the Indian power situation with large voltage fluctuations. Not affected by the voltage fluctuation than current models.

• Operation Guarantee (155V to 280V) * 12k/18k
• Withstands Spike Voltage at 700V * 12k/18k
• PCB Coating

Anticorrosion Heat Exchanger

• Coating (Painting)
• Blue Fin

Indoor Unit Anti-corrosion Coating

Prevent prone refrigerant leak in the Indian market by the pipe coating

Anti-corrosion Heat Exchanger (Blue Fin)

Improved corrosion resistance and longer life of heat exchanger by blue fin treatment of the outdoor unit heat exchanger

Power source Phase Single-phase Voltage 230 V Frequency 50 Hz Capacity Cooling 3.370 (0.840 - 3.540) kW Input Power Cooling 1.180 kW EER Cooling 2.86 W/W Max. Operating Current Cooling 7.0 A Moisture Removal 1.5 l/h Sound Pressure Level Indoor (Cooling) High 43 dB(A) Middle 39 dB(A) Low 33 dB(A) Quiet 22 dB(A) Sound Pressure Level Outdoor (Cooling) High 50 dB(A) Air Flow Rate Indoor (Cooling) High 550 m³/h Outdoor (Cooling) High 1940 m³/h Net Dimensions
Indoor Height 270 mm Width 784 mm Depth 224 mm Net Dimensions
Outdoor Height 541 mm Width 663 mm Depth 290 mm Net Weight Indoor 8.5 kg Outdoor 22 kg Connection Pipe Diameter Liquid φ6.35 mm Gas φ9.52 mm Drain Hose Diameter φ11.8(I.D.) φ15 to φ16.8(O.D.) mm Max Pipe Length (Pre Charge) 20 (10.0) m Max Height Difference 15 m Operation Range Cooling 18 to 55 °CDB Refrigerant Type R32 Charge 450 g

 Conditions Apply (UEP)
