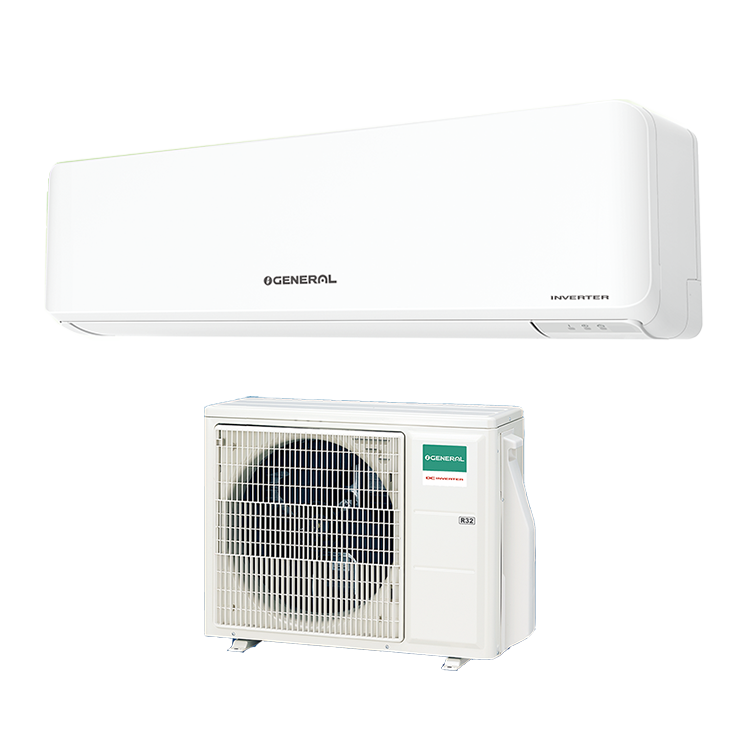

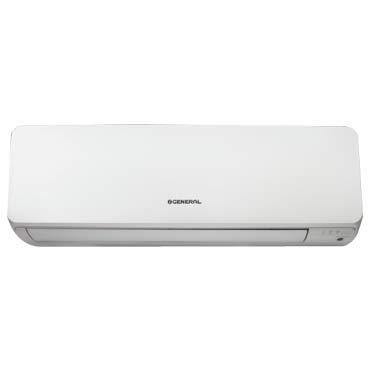

OGeneral Split Ac Inverter 2 ton 3 star ASGG24CPTB

• Cooling Power for Tropical Application (CPTA Technology)
• High Reliability
• • Split AC
  • 2 ton Capacity
  • 518 CFM circulation
  • Inverter
  • Remote Control, Timer
  • Dust Filter
  • Auto Air Swing, Auto Restart
  • Night Glow Buttons
  • 1 Year on product 10 year only compressor and 5 year PCB warranty.

•


  Power source	Phase		Single-phase
  	Voltage		230 V
  	Frequency		50 Hz
  Capacity	Cooling		7.040 (1.760 - 7.040) kW
  Input Power	Cooling		2.390 kW
  EER	Cooling		2.95 W/W
  Max. Operating Current	Cooling		13.5 A
  Moisture Removal			2.7 l/h
  Sound Pressure Level	Indoor (Cooling)	High	50 dB(A)
  		Middle	46 dB(A)
  		Low	41 dB(A)
  		Quiet	29 dB(A)
  Sound Pressure Level	Outdoor (Cooling)	High	53 dB(A)
  Air Flow Rate	Indoor (Cooling)	High	1170 m³/h
  	Outdoor (Cooling)	High	2885 m³/h
  Net Dimensions Indoor	Height		280 mm
  	Width		980 mm
  	Depth		240 mm
  Net Dimensions Outdoor	Height		632 mm
  	Width		799 mm
  	Depth		290 mm
  Net Weight	Indoor		12.5 kg
  	Outdoor		36 kg
  Connection Pipe Diameter	Liquid		φ6.35 mm
  	Gas		φ12.7 mm
  Drain Hose Diameter			φ13.8(I.D.), φ15.8 to φ16.7(O.D.) mm
  Max Pipe Length (Pre Charge)			25 (15.0) m
  Max Height Difference			20 m
  Operation Range	Cooling		18 to 55 °CDB
  Refrigerant	Type		R32
  	Charge		1020 g

• Conditions Apply (UEP)
