Hot, normal and cold water at a touch.
Plus an 18-litre cooling cabinet in the base.
Floor-standing water dispenser with an 18-litre cooling cabinet held below 16°C · ISI Mark · 3 faucets for hot, normal and cold · compressor cooling with R-134a refrigerant · 2.5 L/hr cooling · 3 L cold tank and 0.9 L hot tank · SS304 stainless steel inner tank · child safety lock for hot water · LED indicator lights · 310 × 330 × 970 mm, 17.8 kg gross · 230 V ~ 50 Hz · made in India · 1 year manufacturer warranty
A dispenser on top, a cooling cabinet underneath. The base of the Minimagic SPRING R V PLUS is an 18-litre cooling cabinet held below 16°C — room for bottles, dairy, fruit and small lunch boxes beside the drinking water, in the 310 mm width the dispenser already stands in. One cabinet, one plug point, hot, normal and cold water above it from three faucets.
Compressor cooling, charged with R-134a
Cold water here comes from a compressor cooling circuit running on R-134a refrigerant, rated at 2.5 litres an hour with a 3-litre chilled tank in reserve. The same circuit holds the 18-litre cabinet in the base below 16°C. Cooling power draw is 80–86 W.
SS304 inner tank, and a child safety lock on the hot water
Water is stored in an SS304 stainless steel inner tank, inside a plastic and stainless steel body with an ABS front in white. The hot tap carries a child safety lock, and LED indicator lights show what the unit is doing. It is a floor-mounted cabinet, 310 × 330 × 970 mm and 17.8 kg gross, running on 230 V ~ 50 Hz.
💧 Four things from one cabinet
Hot
0.9 L hot tank, with a child safety lock on the faucet
Normal
Room-temperature water for everyday drinking
Cold
2.5 L/hr compressor cooling, 3 L cold tank
18 L cabinet
Cooling cabinet in the base, held below 16°C
🔧 Built in as standard
Three faucets deliver hot, normal and cold water from the same unit, with a 0.9-litre hot tank behind the hot faucet and a child safety lock on it.
Compressor cooling on R-134a with a 3-litre chilled tank, rated at 2.5 litres an hour, drawing 80–86 W while it cools.

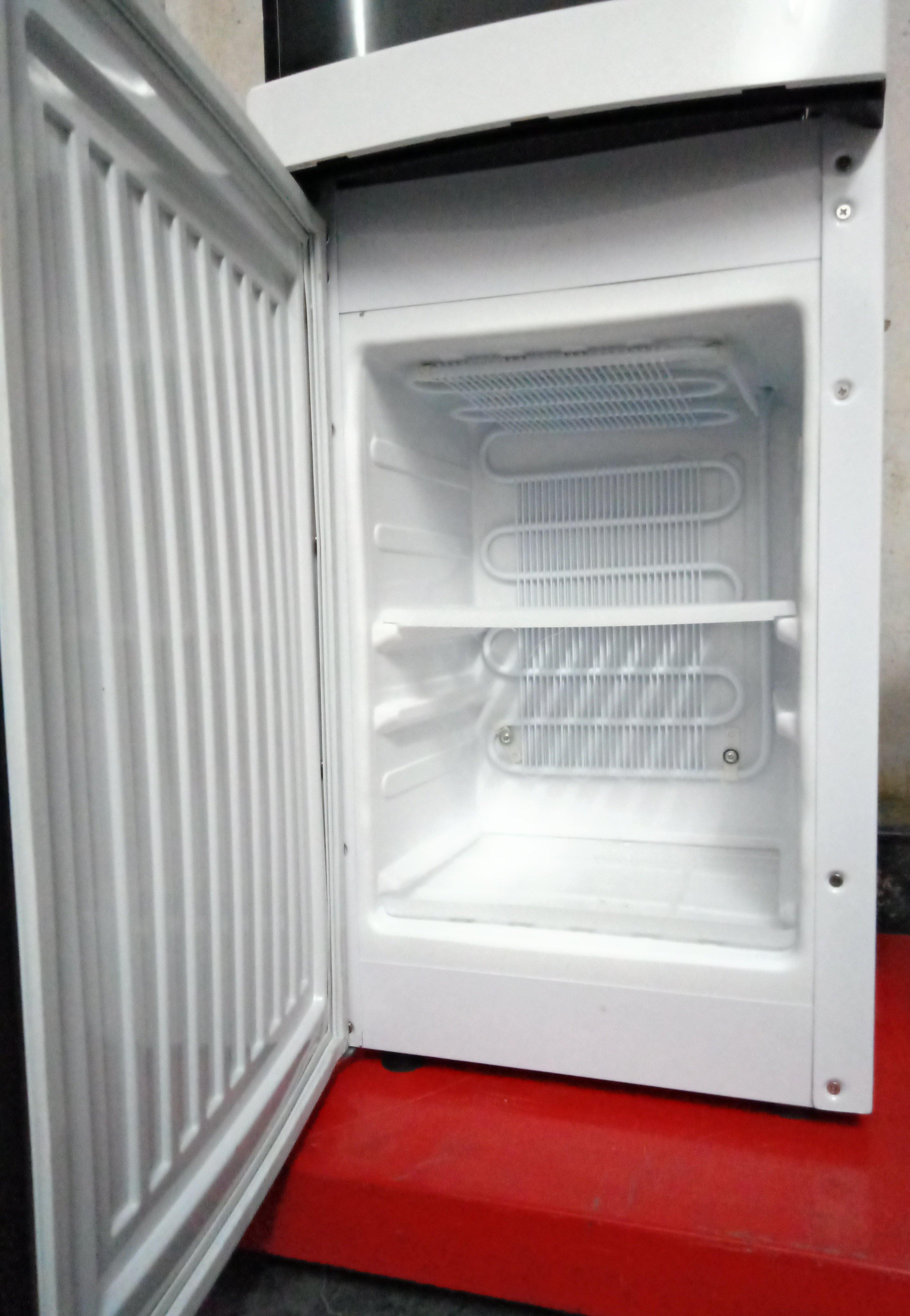

The base is an 18-litre cooling cabinet held below 16°C — bottled drinks, dairy, fruit and snacks, in the floor space the dispenser already takes.
SS304 stainless steel inner tank in a plastic and stainless steel body with an ABS front, 310 × 330 × 970 mm and 17.8 kg gross on the floor.
| Brand / Model | Voltas Minimagic SPRING R V PLUS |
| Product Type | Floor-mounted water dispenser with cooling cabinet |
| Water Modes | Hot · Normal · Cold |
| Number of Faucets | 3 |
| Cooling Cabinet | 18 litres |
| Cooling Cabinet Temperature | < 16°C |
| Cooling Technology | Compressor cooling |
| Refrigerant | R-134a |
| Cooling Capacity | 2.5 L/hr |
| Cold Tank Capacity | 3 L |
| Hot Tank Capacity | 0.9 L |
| Cooling Power | 80–86 W |
| Power Input | 230 V ~ 50 Hz |
| Body Material | Plastic and stainless steel · SS304 inner tank · ABS front |
| Safety & Indicators | Child safety lock for hot water · LED indicator lights |
| Colour | White |
| Installation Type | Floor mounted |
| Dimensions (W × D × H) | 310 × 330 × 970 mm |
| Gross Weight | 17.8 kg |
| Certification | ISI Mark |
| Country of Origin | India |
| Warranty | 1 year manufacturer warranty |
