Description

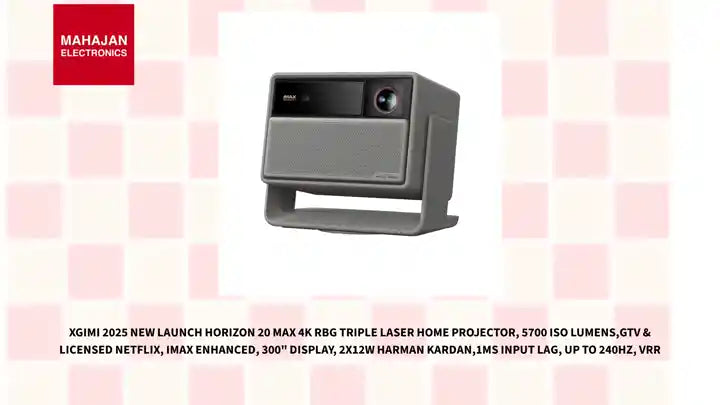

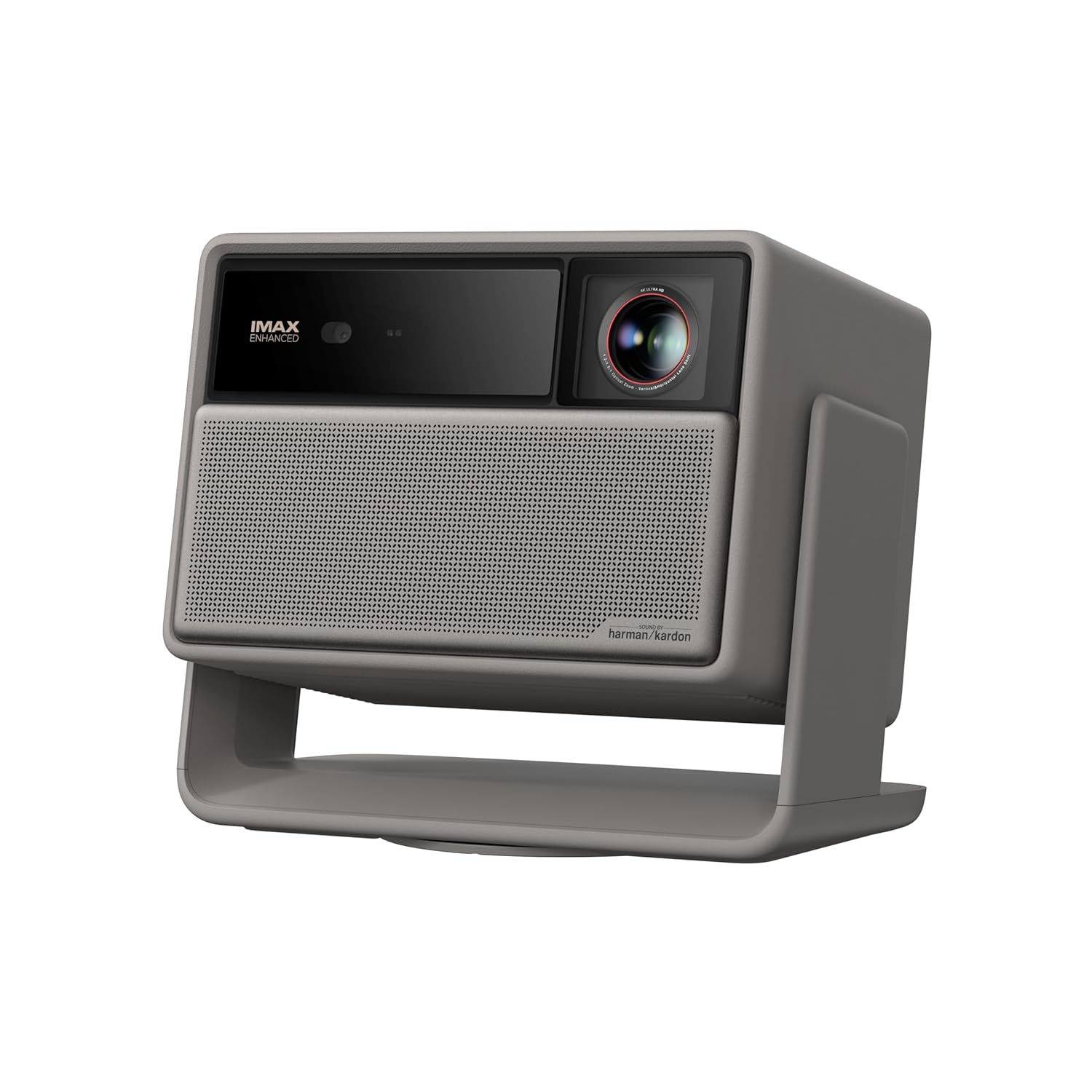

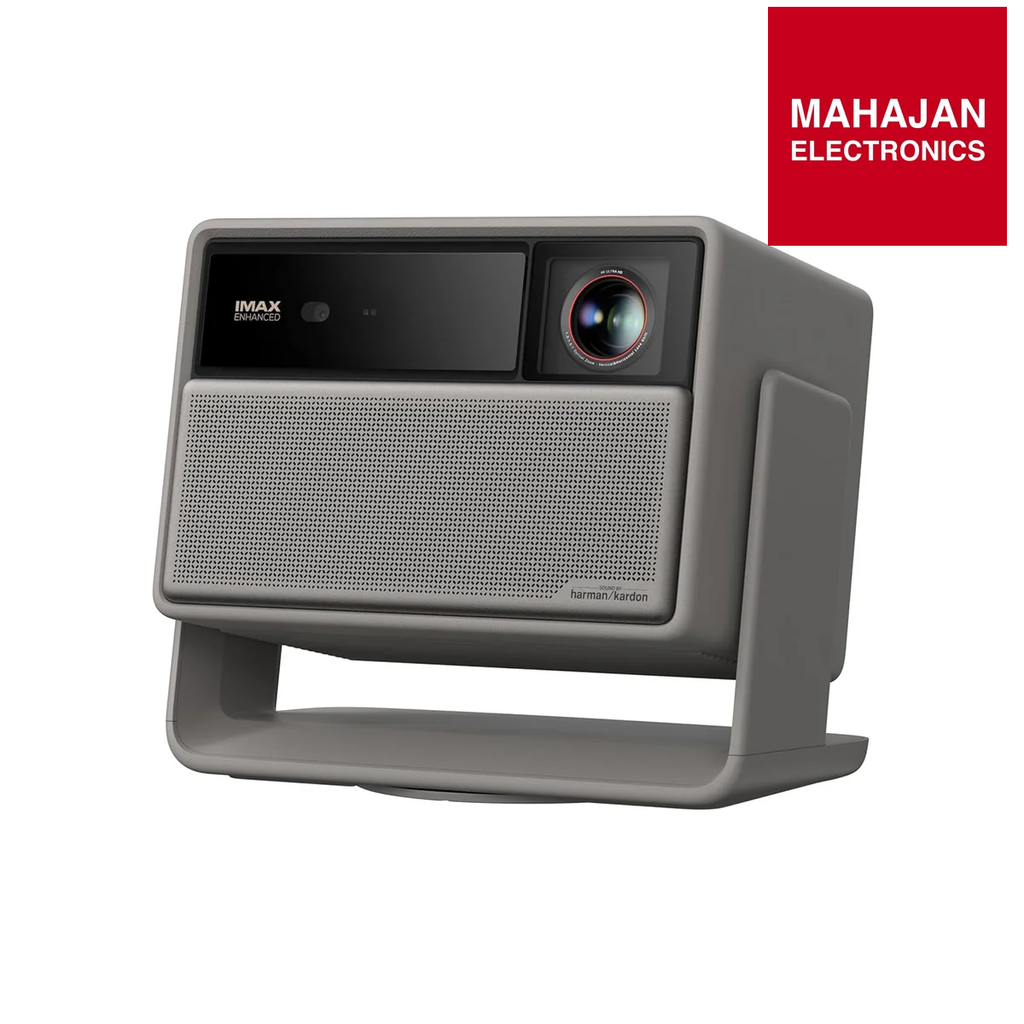

XGIMI HORIZON 20 Max 4K RGB Triple Laser Home Projector — 5700 ISO Lumens, 20,000:1 Contrast (DBLE On), Google TV, 2 × 12W Harman/Kardon, Elephant Grey
X-Master RGB triple laser engine, 3840 x 2160 standard resolution and a 40'' – 300'' image, on a 1.2-1.5:1 throw ratio.
White light output measured according to ISO 21118. The X-Master RGB triple laser engine delivers it alongside 20,000:1 contrast (DBLE On) and BT.2020 110% colour coverage.

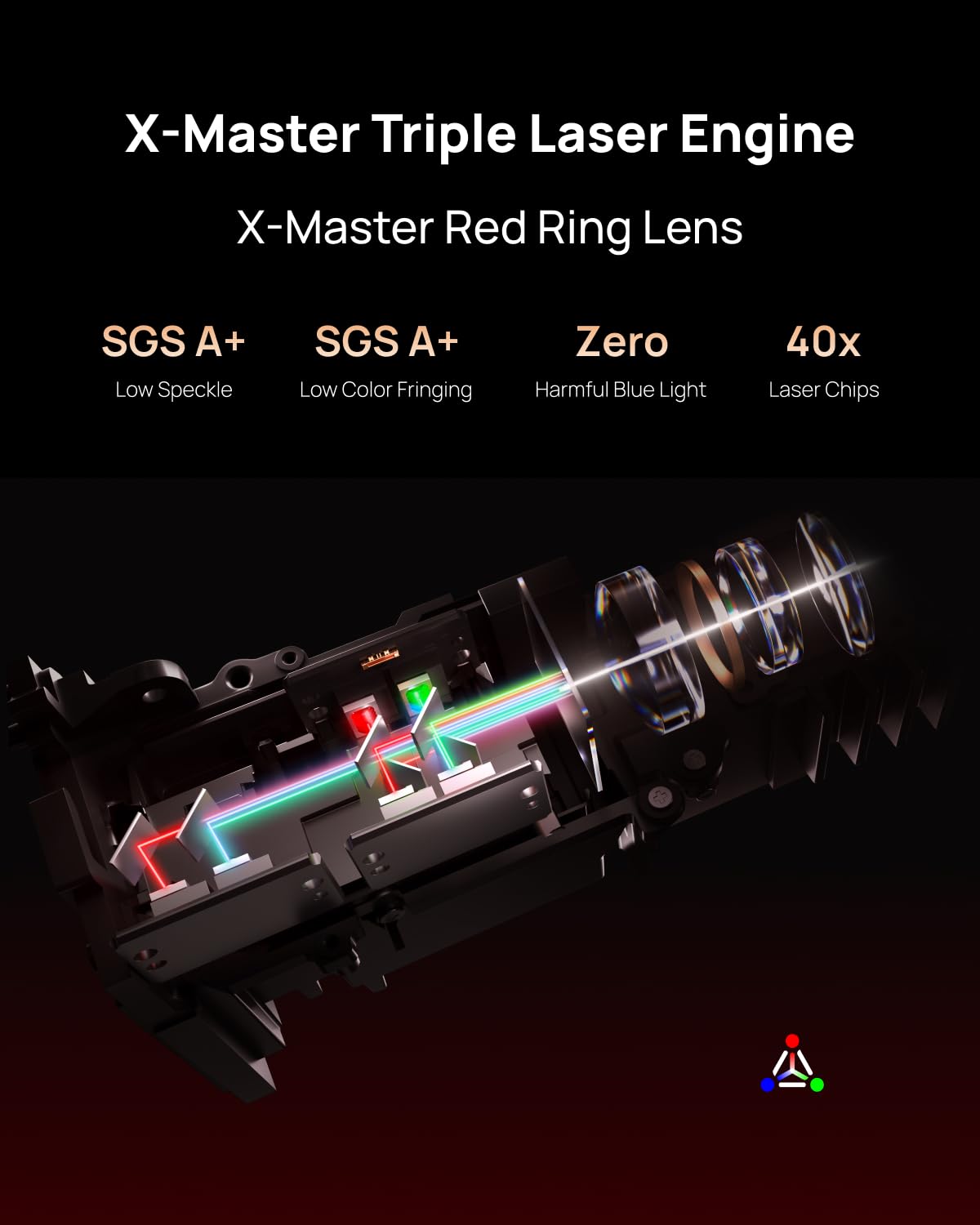

X-Master RGB triple laser engine
Our advanced X-Master RGB triple laser engine delivers 5700 ISO lumens of brightness, 20,000:1 contrast, and 110% BT.2020 colour coverage — vivid, accurate images with depth and clarity on a 0.47'' DMD DLP chip at 3840 x 2160 standard resolution.
Epic gaming performance
Game on a massive 300'' screen with 1ms at 1080P@240Hz latency in Game Mode, and visuals calibrated for HDR gaming. Latency is 2.2ms at 1080P@120Hz and 3ms at 4K @60Hz, with MEMC motion handling and HDR 10+, IMAX Enhanced and Dolby Vision format support.
Set-up intelligence
Auto Focus
Focus is set automatically.
Uninterrupted Auto Keystone
Keystone correction runs uninterrupted.
Intelligent Screen Alignment
The image aligns itself to your screen.
Intelligent Obstacle Avoidance
The image works around objects on the wall.
At a glance

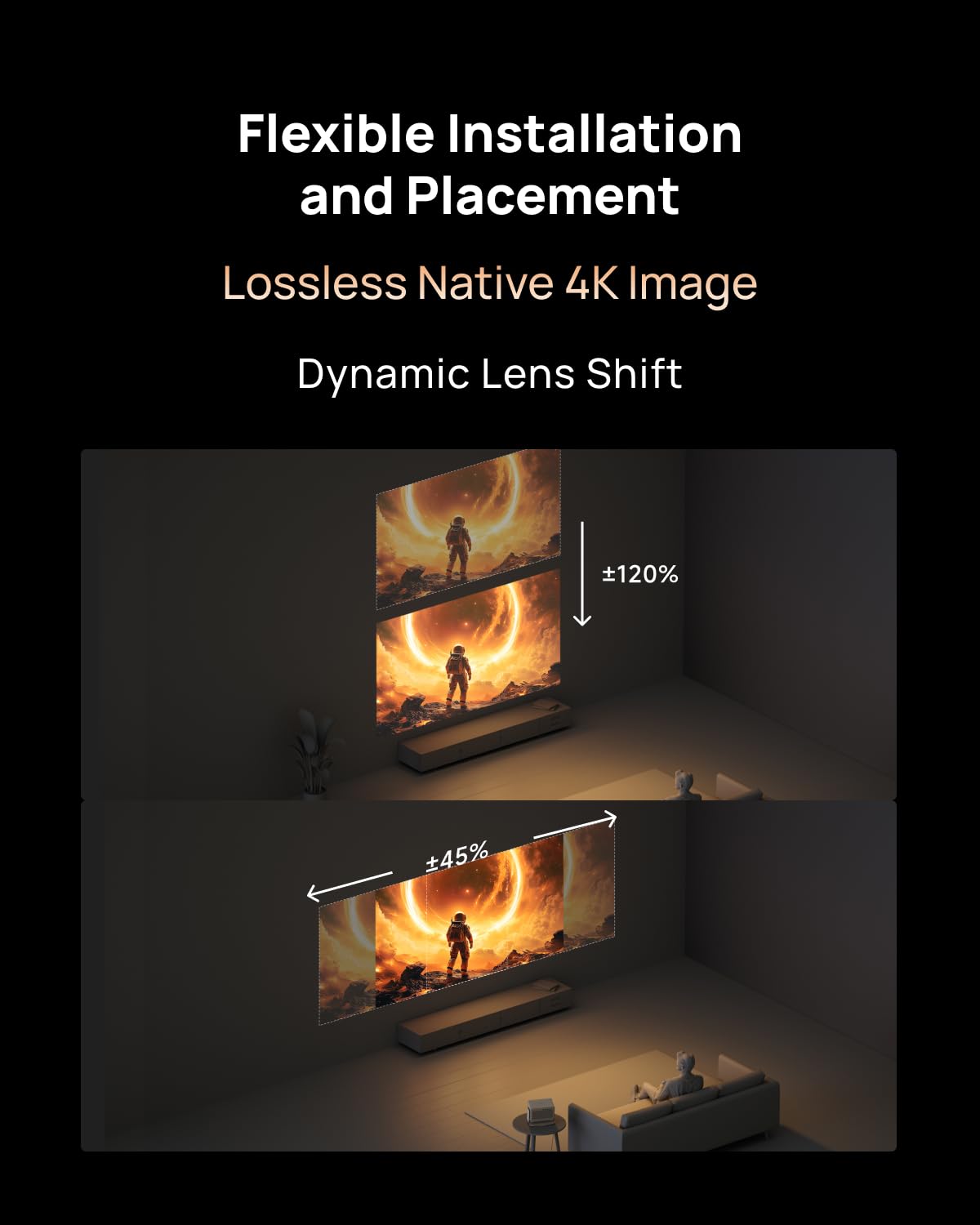

Flexible lens shift and optical zoom give you more freedom in setup — without sacrificing clarity. Lens shift runs V±120%/H±45%, with optical zoom and digital zoom, a high light transmission coated lens and a 1.2-1.5:1 throw ratio.
Our advanced X-Master RGB triple laser engine delivers 5700 ISO lumens of brightness, 20,000:1 contrast, and 110% BT.2020 colour coverage — ensuring vivid, accurate images with exceptional depth and clarity.

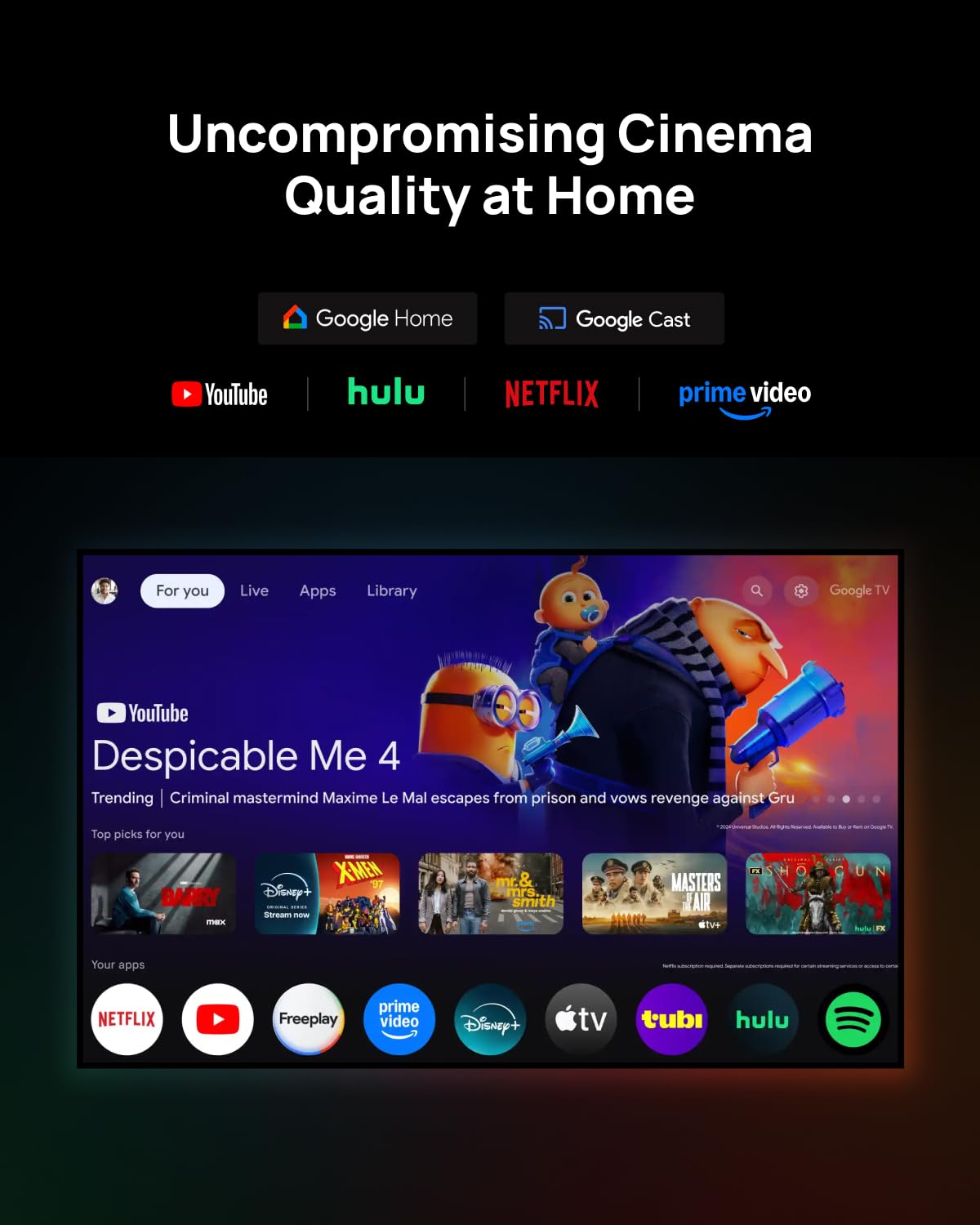

With Google TV and Google Home built in, enjoy instant access to streaming apps and hands-free voice control — no extra devices or remotes required. Mirroring runs over DLNA and GoogleCast, on an MT9679 CPU with Mali-G52 graphics and Fast Boot (STR).
2 × 12W Harman/Kardon speakers, with DTS-Virtual:X, DTS-HD, Dolby Audio, Dolby Digital (DD) and Dolby Digital Plus (DD+). Noise level is ≤28dB@1m.
Input ports: DC × 1, HDMI × 2 (HDMI1 supports eARC), USB 3.0 × 1, USB 2.0 × 1. Output ports: Optical × 1, Audio × 1. WiFi 6 dual-band 2.4/5GHz 802.11a/b/g/n/ac/ax and Bluetooth 5.2.
Power plug × 1, manual × 1, warranty card × 1, and a backlight Bluetooth remote control × 1 with AAA batteries × 2.
Elephant Grey finish and leather-like texture blend warmth and depth into a design made to be proudly displayed anywhere. Product size (H x W x D) is 249 × 298 × 190 mm.
Projection methods are Front, Rear, Front Ceiling and Rear Ceiling, at a 16:9 aspect ratio, a 1.2-1.5:1 throw ratio and a 40'' – 300'' image size.
| Brand | XGIMI |
| Model | HORIZON 20 Max |
| Model No. | XR16A |
| Product classification | Home Projector |
| Light source | RGB Triple Laser |
| Display technique | DLP |
| Display chip | 0.47'' DMD |
| Brightness | 5700 ISO Lumens |
| Standard resolution | 3840 x 2160 pixels |
| Contrast ratio | 20,000:1 (DBLE On) |
| Colour gamut | BT.2020 110% |
| Supported formats | HDR 10+, IMAX Enhanced, Dolby Vision |
| Latency | (Game Mode, AK off) 1ms at 1080P@240Hz, 2.2ms at 1080P@120Hz, 3ms at 4K @60Hz |
| MEMC | Yes |
| 3D | Yes |
| Lens | High Light Transmission Coated Lens |
| Eye protection | Yes |
| Auto keystone correction | Uninterrupted Auto Keystone |
| Focus | Auto Focus |
| Intelligent screen alignment | Yes |
| Intelligent obstacle avoidance | Yes |
| Lens shift | V±120%/H±45% |
| Optical zoom | Yes |
| Digital zoom | Yes |
| Throw ratio | 1.2-1.5:1 |
| Aspect ratio | 16:9 |
| Image size | 40'' - 300'' |
| Projection method | Front, Rear, Front Ceiling, Rear Ceiling |
| CPU | MT9679 |
| GPU | Mali-G52 |
| System | Google TV |
| Fast boot | Yes (STR) |
| Mirroring display | DLNA/GoogleCast |
| Speaker | 2 × 12W Harman/Kardon |
| Audio decoding | DTS-Virtual:X, DTS-HD, Dolby Audio, Dolby Digital (DD), Dolby Digital Plus (DD+) |
| WiFi | WiFi 6 Dual-band 2.4/5GHz, 802.11a/b/g/n/ac/ax |
| Bluetooth | Bluetooth 5.2 |
| Input ports | DC × 1, HDMI × 2 (HDMI1 supports eARC), USB 3.0 × 1, USB 2.0 × 1 |
| Output ports | Optical × 1, Audio × 1 |
| Noise level | ≤28dB@1m |
| Product size (H x W x D) | 249 × 298 × 190 mm |
| In the box | Power Plug × 1, Manual × 1, Warranty Card × 1, Backlight Bluetooth Remote Control × 1, AAA Batteries × 2 |
| Colour | Elephant Grey |
